TheChemiKid
Hazard to Others
Posts: 493
Registered: 5-8-2013
Location: ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
Member Is Offline
Mood: No Mood
|
|
Zylenesulfonic Acid
I was very interested in making Xylenesulfonic Acid, and after some thinking, I believe it could be made by removing water by a dean stark trap while
refluxing xylene and sulfuric acid.
I do not have a dean stark trap, but I know in the synthesis of p-Toluenesulfonic Acid, water can be distilled off instead of being removed by a dean
stark trap. I would think the same could be done with Xylenesulfonic Acid.
Has anyone attempted this synthesis, or will I be the first (that we know of)?
[Edited on 3-9-2014 by TheChemiKid]
When the police come
\( * O * )/ ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
|
|
|
thesmug
Hazard to Others
Posts: 370
Registered: 17-1-2014
Location: Chicago, Il (USA)
Member Is Offline
Mood: No Mood
|
|
I think you're pretty spot on but do you have access to sulfur trioxide? If so, that would be the easier way of sulfonating your xylene.
|
|
|
TheChemiKid
Hazard to Others
Posts: 493
Registered: 5-8-2013
Location: ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
Member Is Offline
Mood: No Mood
|
|
No, unfortunately I don't. I could make a generator with a sulfate decomposing though. I think sulfuric acid would be easier, even if there is a lower
yield.
When the police come
\( * O * )/ ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
|
|
|
Metacelsus
International Hazard
Posts: 2539
Registered: 26-12-2012
Location: Boston, MA
Member Is Offline
Mood: Double, double, toil and trouble
|
|
Don't you mean xylene?
Is your xylene a mixture of isomers, or just one isomer?
|
|
|
Tsjerk
International Hazard
Posts: 3032
Registered: 20-4-2005
Location: Netherlands
Member Is Offline
Mood: Mood
|
|
Are you aiming for the mono- or disulfonic acid?
|
|
|
Oscilllator
National Hazard
Posts: 659
Registered: 8-10-2012
Location: The aqueous layer
Member Is Offline
Mood: No Mood
|
|

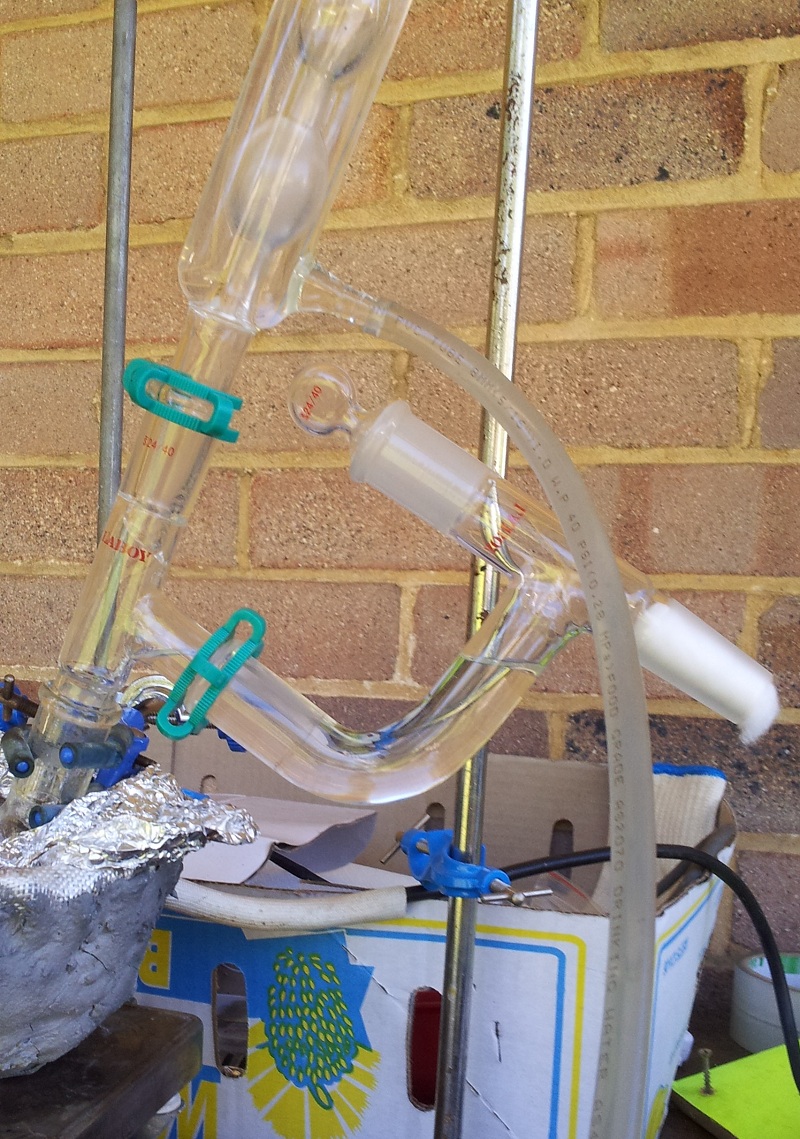

You can improvise a dean-stark trap (as shown in the picture). It worked quite well for my synth of p-toluenesulphonic acid.
|
|
|
subsecret
Hazard to Others
Posts: 424
Registered: 8-6-2013
Location: NW SC, USA
Member Is Offline
Mood: Human Sadness - Julian Casablancas & the Voidz
|
|
That's an interesting apparatus to replace a Dean-Stark trap, Oscillatior. I've thought about making a similar one, but using a
two-necked flask and a reflux condenser in place of the "stillhead."
Very interesting.
Fear is what you get when caution wasn't enough.
|
|
|
TheChemiKid
Hazard to Others
Posts: 493
Registered: 5-8-2013
Location: ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
Member Is Offline
Mood: No Mood
|
|
Yes, stupid me. I fixed the mistake.
I was originally aiming for the mono-, but I could try to make the di- as well.
When the police come
\( * O * )/ ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
|
|
|
Paddywhacker
Hazard to Others
Posts: 478
Registered: 28-2-2009
Member Is Offline
Mood: No Mood
|
|
Have you looked up the sulfonation of xylene?
I think you will change your plans completely when you do.
|
|
|
TheChemiKid
Hazard to Others
Posts: 493
Registered: 5-8-2013
Location: ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
Member Is Offline
Mood: No Mood
|
|
I looked it up. I am not sure what you mean when you say I "will change my plans completely when I do."
Can you please elaborate?
When the police come
\( * O * )/ ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
|
|
|
Nicodem
|
Thread Moved
9-3-2014 at 07:22 |
Paddywhacker
Hazard to Others
Posts: 478
Registered: 28-2-2009
Member Is Offline
Mood: No Mood
|
|
Quote: Originally posted by TheChemiKid  | I looked it up. I am not sure what you mean when you say I "will change my plans completely when I do."
Can you please elaborate? |
You looked it up where?
Have you ever seen Dean Stark apparatus used for this reaction?
Have a look at the preparation of toluene sulfonic acid and then the relative reactivities of benzene, toluene and xylene. Do you really think you
need the conditions that you propose?
|
|
|
TheChemiKid
Hazard to Others
Posts: 493
Registered: 5-8-2013
Location: ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
Member Is Offline
Mood: No Mood
|
|
Have you seen Unintentional Chaos' prep?
When the police come
\( * O * )/ ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
|
|
|
Hockeydemon
Hazard to Others
Posts: 218
Registered: 25-2-2013
Member Is Offline
Mood: No Mood
|
|
| Quote: Originally posted by Oscilllator | | You can improvise a dean-stark trap (as shown in the picture). It worked quite well for my synth of p-toluenesulphonic acid. |
Brilliant idea thank you. It never occurred to me to use my claisen adapter as a dean stark.
|
|
|
TheChemiKid
Hazard to Others
Posts: 493
Registered: 5-8-2013
Location: ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
Member Is Offline
Mood: No Mood
|
|
For me, buying a dean stark trap costs 5 dollars more than a claisen adapter, so I am going to buy a dean stark trap.
When the police come
\( * O * )/ ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
|
|
|
Paddywhacker
Hazard to Others
Posts: 478
Registered: 28-2-2009
Member Is Offline
Mood: No Mood
|
|
Have you looked at Vogel? Vogel's main prep, on page 874 simply reacts the two reagents. The reaction is not an equilibrium, so removing the water
azeotropically by Dean Stark is an unnecessary complication.
UC does write the reaction as an equilibrium in his video, but that is incorrect. These sulfonic acids are quite stable and not subject to
hydrolysis. Were that the case then a DS trap would make sense, but it is not.
|
|
|
TheChemiKid
Hazard to Others
Posts: 493
Registered: 5-8-2013
Location: ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
Member Is Offline
Mood: No Mood
|
|
Is that in Vogel's third or fifth edition?
When the police come
\( * O * )/ ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
|
|
|
Mailinmypocket
International Hazard
Posts: 1351
Registered: 12-5-2011
Member Is Offline
Mood: No Mood
|
|
Third, in the forum library. Although the fifth likely has it as well. I did it exactly as per vogels third without a Dean-Stark trap and it went well
|
|
|
TheChemiKid
Hazard to Others
Posts: 493
Registered: 5-8-2013
Location: ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
Member Is Offline
Mood: No Mood
|
|
Thank you.
When the police come
\( * O * )/ ̿̿ ̿̿ ̿'̿'̵͇̿̿з=༼ ▀̿̿Ĺ̯̿̿▀̿ ̿ ༽
|
|
|
Paddywhacker
Hazard to Others
Posts: 478
Registered: 28-2-2009
Member Is Offline
Mood: No Mood
|
|
| Quote: Originally posted by Mailinmypocket | | Third, in the forum library. Although the fifth likely has it as well. I did it exactly as per vogels third without a Dean-Stark trap and it went well
|
Right, and with xylene the reaction will go at even milder conditions.
However, that being said, if you want to purify the product by short-path vacuum distillation then you'll have to remove the water, and doing so
azeotropically by Dean Stark is probably as good a method as any.
|
|
|
