Stirrer Shaft to fit 24/40 and is Acid Resistant
I am trying to find a shaft and propeller for an overhead stirrer that can fit through a 24/40 neck and is resistant to all strong acids. Winner will
be rewarded with a cookie.
[Edited on 24-9-2013 by malford]
|
|
|
Rosco Bodine
Banned
Posts: 6370
Registered: 29-9-2004
Member Is Offline
Mood: analytical
|
|
http://www.ebay.com/itm/24-PTFE-Standard-Stopper-Teflon-Stir...
http://www.ebay.com/itm/PTFE-Stirrer-300mm-Diameter-7mm-Padd...
|
|
|
Dr.Bob
International Hazard
Posts: 2734
Registered: 26-1-2011
Location: USA - NC
Member Is Offline
Mood: No Mood
|
|
I have glass stirrer shafts, 24/40 holders and a few teflon blades. Can you tell me about how long a shaft and what size flask, and I can see what I
have for that. There is a real limit on how big a blade will fit through a 24/40 joint, so that is the main issue. If you have a larger enter joint,
then you can really use a big stirrer blade.
Bob
|
|
|
malford
Hazard to Others
Posts: 116
Registered: 17-6-2013
Member Is Offline
Mood: No Mood
|
|
Rosco, my trouble was finding a shaft and propeller that could fit through a 24/40 neck in a round bottom flask (i.e. no access to other side as in a
vessel/lid) and that is impervious to strong acids (i.e. made of PTFE or PP.)
Dr. Bob, that limit of which you speak is my problem. I can't really find any propeller that will fit through a 24/40 neck that is made of PTFE. It is
for a 2L RBF.
|
|
|
Magpie
lab constructor
Posts: 5939
Registered: 1-11-2003
Location: USA
Member Is Offline
Mood: Chemistry: the subtle science.
|
|
see: http://www.ebay.com/itm/Electric-overhead-stirrer-mixer-shaf...
These are folding prop types.
Also search "ptfe stirrer shaft" on eBay.
[Edited on 26-9-2013 by Magpie]
[Edited on 26-9-2013 by Magpie]
[Edited on 26-9-2013 by Magpie]
The single most important condition for a successful synthesis is good mixing - Nicodem
|
|
|
malford
Hazard to Others
Posts: 116
Registered: 17-6-2013
Member Is Offline
Mood: No Mood
|
|
If that stirrer is fully folded in the image, it wouldn't fit through a 24/40 neck. Have you worked with one of these types before? Does it collapse
further?
Also, just FYI. I have searched for hours using every combination of search terms on eBay, Google, and all major manufacturer websites. So far I have
not been able to find a PTFE stirrer that looks likes it will fit through a 24/40 neck.
[Edited on 26-9-2013 by malford]
|
|
|
BromicAcid
International Hazard
Posts: 3247
Registered: 13-7-2003
Location: Wisconsin
Member Is Offline
Mood: Rock n' Roll
|
|
10 mm glass stir shaft with button:
http://r.ebay.com/D5yKQ6
Then buy a separate stirrer blade for that shaft:
http://r.ebay.com/7sAyjA
So long as the blade fits the shaft you can easily trim down the blade with a pair of scissors to make it the right size to fit into the neck of your
flask.
|
|
|
malford
Hazard to Others
Posts: 116
Registered: 17-6-2013
Member Is Offline
Mood: No Mood
|
|
You, sir, solved my problem!
|
|
|
Dr.Bob
International Hazard
Posts: 2734
Registered: 26-1-2011
Location: USA - NC
Member Is Offline
Mood: No Mood
|
|

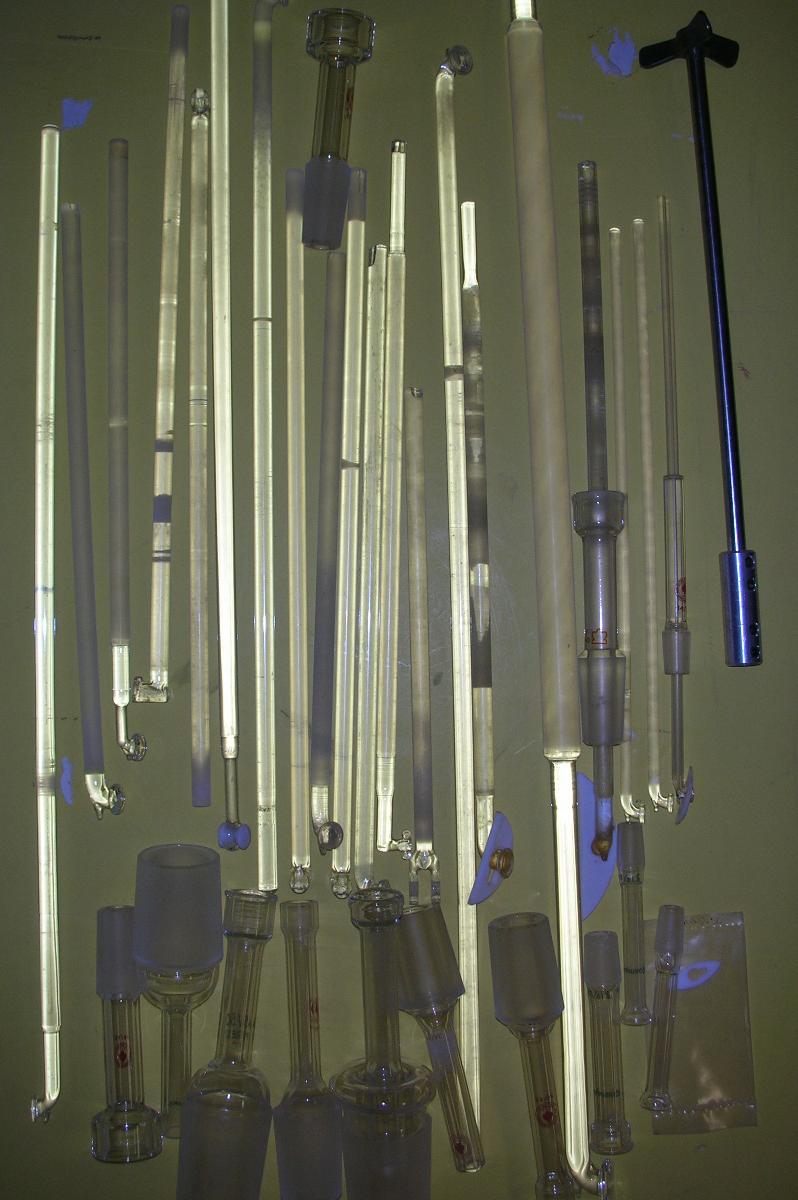

Here is a photo of some stirrer shafts and adapters. I have some more pieces elsewhere as well, but have to find them still. The bottom link is a
photo of some of the 24/40 bearings in better resolution. I also have a few other sizes as well.
https://docs.google.com/file/d/0B80lrYgm1HCvS3kwQlZnZUliMUk/...
[Edited on 27-9-2013 by Dr.Bob]
|
|
|
Magpie
lab constructor
Posts: 5939
Registered: 1-11-2003
Location: USA
Member Is Offline
Mood: Chemistry: the subtle science.
|
|
This one specifically says it will fit a 24/40 neck:
http://www.ebay.com/itm/PTFE-stirrer-90mm-blade-10mm-550mm-s...
For those that don't specifically say I suggest you submit a question to the seller.
The single most important condition for a successful synthesis is good mixing - Nicodem
|
|
|
malford
Hazard to Others
Posts: 116
Registered: 17-6-2013
Member Is Offline
Mood: No Mood
|
|
Thank you, Magpie!
Bob, do you know if any of those bearings will work under vacuum?
|
|
|
Organikum
resurrected
Posts: 2337
Registered: 12-10-2002
Location: Europe
Member Is Offline
Mood: frustrated
|
|
They should be all precision grounded and with the stirshaft also precision grounded and some grease they are perfect for vacuum.
Speed is limited though, higher speed would callfor watercooled bearings.
It is just that the grounded part of the shaft (mostly only a part is treated this way) is in the right position for the bearing.
But I am sure DrBob can and will provide you with a set fitting for your 2l RBF.
|
|
|
Dr.Bob
International Hazard
Posts: 2734
Registered: 26-1-2011
Location: USA - NC
Member Is Offline
Mood: No Mood
|
|
As Organikum says, they can work with vacuum if greased properly, but I would say that they will only work under a mild vacuum well. Any moving joint
will leak a fair amount of vacuum at a good stirring speed, so you will not be able to keep a real high vacuum. Most stirrer like this are used for
reaction stirring, under a slight inert pressure, which helps to keep the grease or oil from leaking in to the flask to a significant extent. I also
do have a couple of water cooled bearings somewhere, if people think that they will be needing them. I am still trying to collect all of these
pieces, they were scattered among several boxes, and I will try to get better photos with time.
PS. Can someone tell me how to link a larger photo in a thread via a URL? I have some better photos, but this forums silly photo sizes are killing
me. In some forums, you can simply use [IMG] url [/IMG] to insert a real photo, but I could not make it work here.
|
|
|
malford
Hazard to Others
Posts: 116
Registered: 17-6-2013
Member Is Offline
Mood: No Mood
|
|
I use imgur.com to host photos. Thanks for your time, Bob.
|
|
|
Magpie
lab constructor
Posts: 5939
Registered: 1-11-2003
Location: USA
Member Is Offline
Mood: Chemistry: the subtle science.
|
|
I have a ptfe folding prop type stirrer and bearing for size 19/22. I have used it several times but I don't recall ever using it under vacuum.
The single most important condition for a successful synthesis is good mixing - Nicodem
|
|
|
bfesser
Resident Wikipedian
Posts: 2114
Registered: 29-1-2008
Member Is Offline
Mood: No Mood
|
|
Embedding Images with BBCode
Quote: Originally posted by Dr.Bob  | | PS. Can someone tell me how to link a larger photo in a thread via a URL? I have some better photos, but this forums silly photo sizes are killing
me. In some forums, you can simply use [IMG] url [/IMG] to insert a real photo, but I could not make it work here. |
The BBCode works fine, but you can't have any spaces between the <a href="faq.php?page=messages#7">BBCode tags</a> and
the URL. Make sure that "Turn BBCode off?" is unchecked before posting. The BBCode tages aren't case sensitive, but be consistent and use either all caps or
all lowercase for your tags. Also, beware that I will edit posts to reduce the display sizes of larger images (usually those greater than 800 px in
width) as necessary. If you'd like, you can embed thumbnails which link to full-resolution images on an external host. | Code: | [url=full_resolution_URL_here][img]thumbnail_URL_here[/img][/url] |
Finally, you could use HTML—as I regularly do—to insert images or format your posts. It's much more flexible and—I
think—straightforward. | Code: | <img src="URL_here" />
<a href="full_resolution_URL" target="_blank"><img src="thumbnail_URL" /></a> |
One last thing to mention: If you copy-paste the horrible code from imgur.com or any other annoying image hosting service, don't be surprised when I
edit your posts.
[Edited on 27.9.13 by bfesser]
|
|
|
