DIY blast/splatter shield
I put this together out of some scrap wood and a shatterproof glass refrigerator shelf. Originally, it was just conceived of as a markerboard, and it
still retains that function, but I've also started to get good mileage as a shield against splattering chemicals or unruly redox reactions.

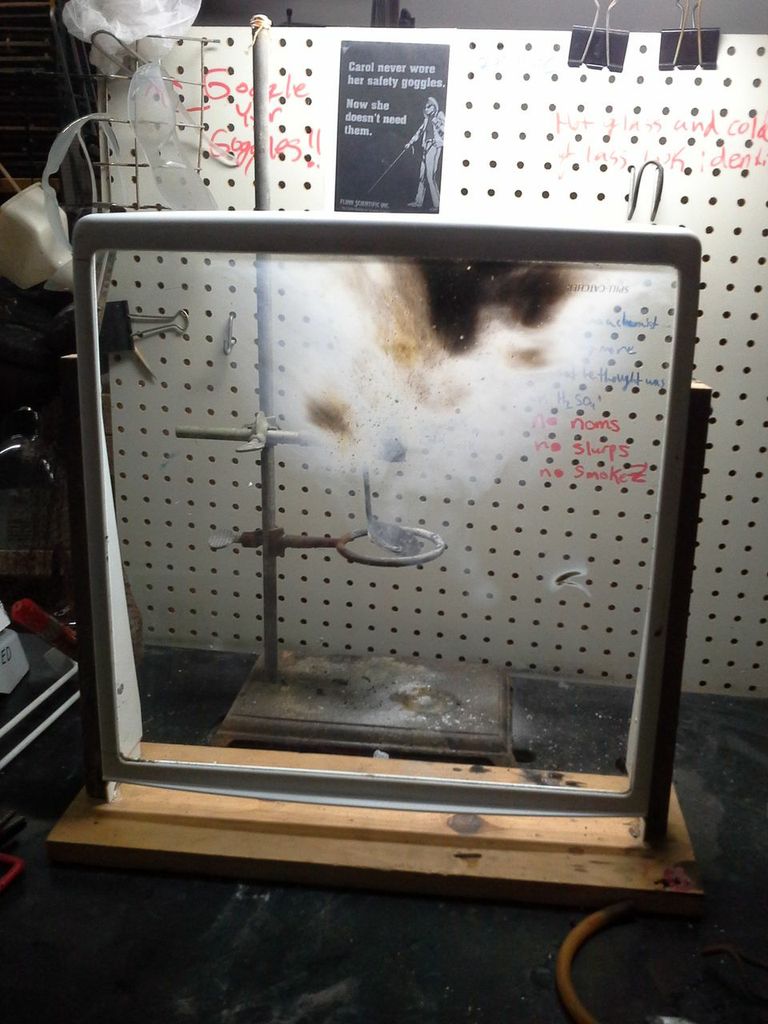

Pictured is the plume left after I ignited a magnesium/permanganate mix. Glad the shield was in place!
|
|
|
Fantasma4500
International Hazard
Posts: 1681
Registered: 12-12-2012
Location: Dysrope (aka europe)
Member Is Offline
Mood: dangerously practical
|
|
magnesium / permanganate flash??
nah.. just keep the sorroundings lower than the plate or whatever you use to ignite it on and then you should be fine.. you dont need to be close to
it, but ofcourse if it doesnt selfconfine it could be fun to stand much closer to the flash to see the reaction so to say better..
where did you get plexiglass from anyways?
|
|
|
mayko
International Hazard
Posts: 1218
Registered: 17-1-2013
Location: Carrboro, NC
Member Is Offline
Mood: anomalous (Euclid class)
|
|
Heh... it certainly is fun to see the reaction up close, but I didn't see a lot else for the next minute, other than a big green cloud in my vision.
Perhaps not such a great idea; if I'd started a fire or gotten hurt I might not have been able to see well enough to handle it.
It's real glass, but a very tough kind. It was a shelf in an old refrigerator. You can also write on it with markers or highlighters, so the next one
I build will likely have a couple of built-in UV LEDs for fluorescent note-taking.
Edit: like this
[Edited on 29-3-2013 by mayko]
|
|
|
Hexavalent
International Hazard
Posts: 1564
Registered: 29-12-2011
Location: Wales, UK
Member Is Offline
Mood: Pericyclic
|
|
I built a crude blast screen by finishing some scrap wood, and L-bracketing a sheet of 8mm acrylic (Perspex) to it. Here it is in front of the
ball-mill I am developing:
I also like to write reaction schemes on the front of my hood (again, acrylic), which can be removed manually by wiping quite firmly with a paper
towel:
[Edited on 29-3-2013 by Hexavalent]
[Edited on 29-3-2013 by Hexavalent]
