Looking for Heidolph rotovap G6 glass set adapter
Hello, title should say it all
I have checked their main site but it is very expensive (making up almost 60% of the entire rotovap price)
if anyone has some better ideas, or this part availablei would be happy to buy it/take recommendations.

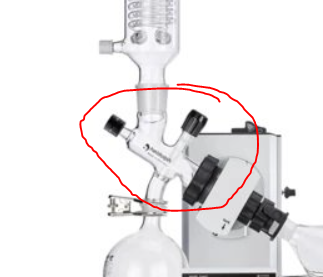

attatched is the image with the part i am looking for (ideally also with plastic screw parts)
[Edited on 10-5-2022 by Kurt]
|
|
|
Dr.Bob
International Hazard
Posts: 2734
Registered: 26-1-2011
Location: USA - NC
Member Is Offline
Mood: No Mood
|
|
I likely have a Buchi part like that, I think they use all of the same joints, S35 on the bottom, and standard Buchi seal on the right. What size is
the joint at the top for the condenser?
|
|
|
Kurt
Harmless
Posts: 8
Registered: 7-5-2022
Member Is Offline
|
|
Its an NS45 (45*40)
(the side flange is slightly below 50mm)
[Edited on 11-5-2022 by Kurt]
|
|
|
Dr.Bob
International Hazard
Posts: 2734
Registered: 26-1-2011
Location: USA - NC
Member Is Offline
Mood: No Mood
|
|

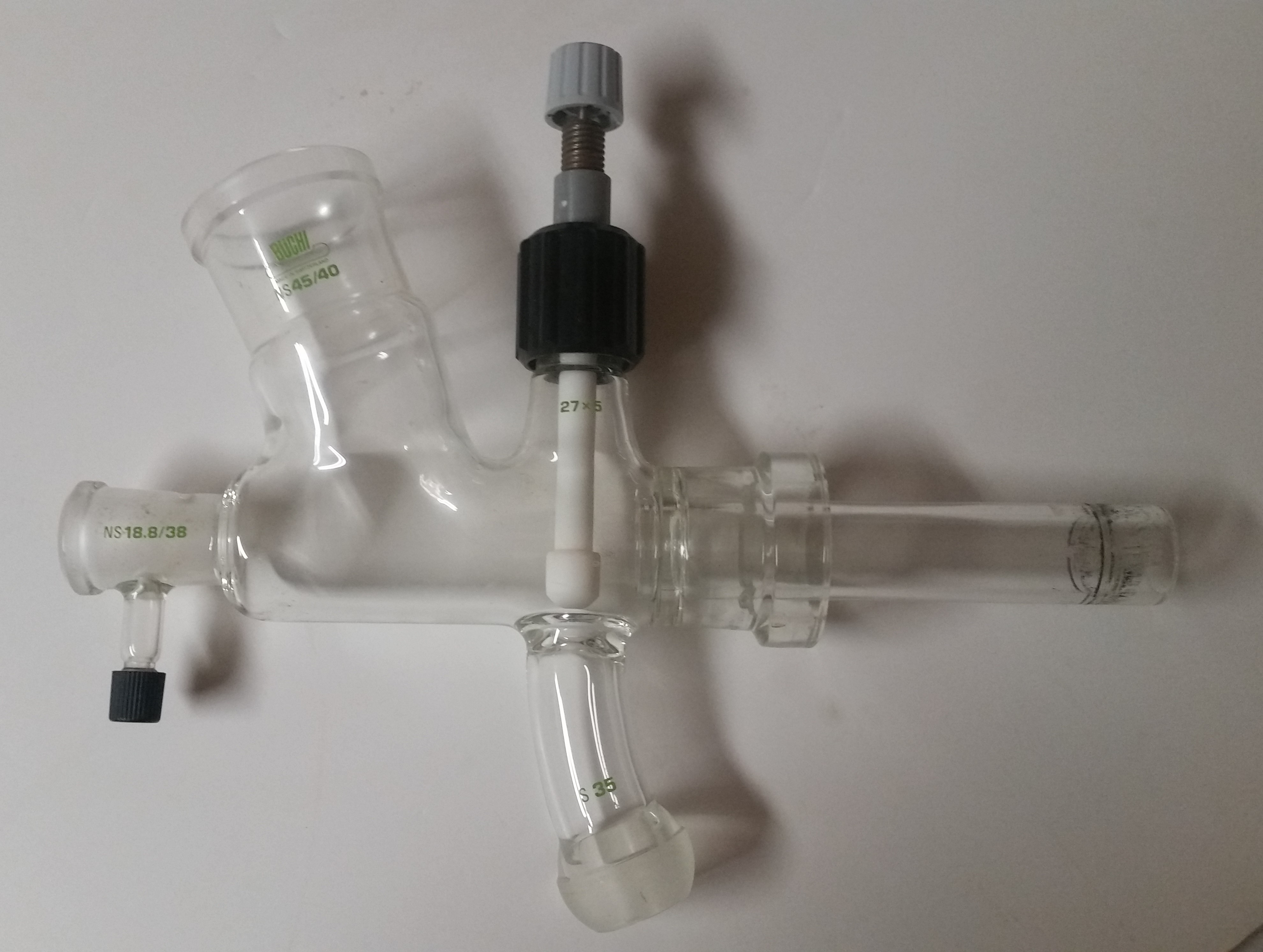

Here is one I just found, it has the steam duct built in, but not sure if that would work, I think I have one that is similar except for not having
the steam duct built in. How does this look? Are you in the US?
[Edited on 13-5-2022 by Dr.Bob]
|
|
|
Triflic Acid
Hazard to Others
Posts: 486
Registered: 27-9-2020
Member Is Offline
Mood: Slowly Oxidizing into Oblivion
|
|
Hi Dr. Bob,
I had a similar thing I sent in a U2U to you. Please let me know if you received it.
There wasn't a fire, we just had an uncontrolled rapid oxidation event at the power plant.
|
|
|
Kurt
Harmless
Posts: 8
Registered: 7-5-2022
Member Is Offline
|
|
This one looks very similar to the one i need, it might work, i would need to know the size of the glass joint and the size of the vapor tube.
I am based in the EU
(the size of the joint connected to the rotary seal is more important than the joint towards the condensor)
[Edited on 13-5-2022 by Kurt]
[Edited on 13-5-2022 by Kurt]
|
|
|
Dr.Bob
International Hazard
Posts: 2734
Registered: 26-1-2011
Location: USA - NC
Member Is Offline
Mood: No Mood
|
|
The joint is 45/50, which is pretty standard, the round part is the Standard Buchi flange, which is the 50 mm one.
I'll try to measure the steam duct for the exact dimensions.
here are some other similar parts in this link.
http://www.sciencemadness.org/talk/viewthread.php?tid=15667&...
The shipping may be more than the part, but it would only be about $100 for the part.
|
|
|
Kurt
Harmless
Posts: 8
Registered: 7-5-2022
Member Is Offline
|
|
As long as it doesnt flop around thats fine, yeah vapor tube would be the most important thing i guess...
Do the 100$ also include the stopper and screw (with the metal clip spring)?
I highly doubt that shipping would be that high to the eu for such a small part tho.
What would the shipping be to Tennessee just out of curiosity?
|
|
|
Dr.Bob
International Hazard
Posts: 2734
Registered: 26-1-2011
Location: USA - NC
Member Is Offline
Mood: No Mood
|
|
The length of the steam duct is 120 mm from the inside joint, and it sticks out 87 mm past the end of the flange. The Buchi flange is 50 mm OD, 36
mm ID. The steam duct is ~26 mm diameter.
I do have (and would include) the stoppers for the 18.8/38 joint for the vacuum release, that is a standard stoppcock for Buchis. It would come with
the valve screw shown. Are you also asking about the S35 spring clamp to hold the receiver? I have those, normally ask $5 ea for those.
The basic piece weighs just over a pound, once bubblewrapped and packed with the clip, it would be about 2 pounds, which is about $30 to Europe. The
postage prices keep going up every month. To KY, it would be about $9-10. I could also sell via Ebay, which provides their own international
shipping, sometimes cheaper than I can. Let me know if you need any other measurements, I found my mm ruler now.
[Edited on 14-5-2022 by Dr.Bob]
|
|
|
Kurt
Harmless
Posts: 8
Registered: 7-5-2022
Member Is Offline
|
|

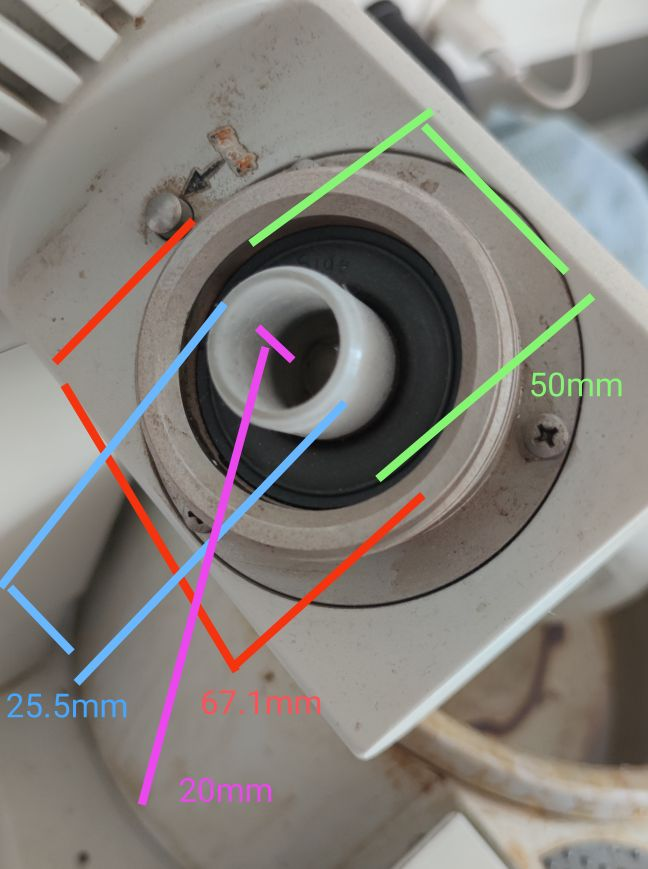

The vapour tube is unfortunately too big, the joint size seems good,do you have similar connectors without the vapour tube avalible?
also since you found your mm ruler, is the outside of the rotary joint exactly 50mm? or slighly below?
|
|
|
Dr.Bob
International Hazard
Posts: 2734
Registered: 26-1-2011
Location: USA - NC
Member Is Offline
Mood: No Mood
|
|
I think that I have some of these without the vapor/steam tube, just have to dig them out, might be still attched to the condenser. I'll look, but
it may take a few days to dig through the condensers. The flange appears to be 50 mm exactly, those are all the same as far as I have ever seen,
Heidolph is simply copying Buchis design after the patent ran out, I believe, so they should all be interchangable.
[Edited on 14-5-2022 by Dr.Bob]
|
|
|
Kurt
Harmless
Posts: 8
Registered: 7-5-2022
Member Is Offline
|
|
yeah maybe its my calpiers, but im measuring something like 49.5mm, eh... should fit
yeah would be nice if you could dig some out ^^
|
|
|
chemship1978
Harmless
Posts: 32
Registered: 8-6-2018
Member Is Offline
|
|
Kurt, I sent you a U2U.
|
|
|
Kurt
Harmless
Posts: 8
Registered: 7-5-2022
Member Is Offline
|
|
Request closed, got a full set, thanks anyway.
|
|
|
