Glassware cleaning routine
I'm really somewhat paranoid when it comes to cleaning glassware that I'm leaving some impurities there and it's gonna mess up my reaction or
something.
My routine is: if it's water soluble and non toxic that can be discarded it's poured down the drain, the flask rinsed with water, then ethanol and
dried.
If it's water soluble and hazardous, I try to neutralize it or otherwise store it in waste container, washings also store in waste container and then
rinse with ethanol/acetone and then burn the solvents, dry glassware with heat gun.
If it's organics, then distill the solvent if possible, if not then try to neutralize it that it could be poured down the drain, if not then store it
in waste container. Ethanol/acetone washes are either burned or stored along with the waste.
How do you deal with dirty glass with potentially dangerous solvents/byproducts &what do you think about this writeup?
|
|
|
teodor
National Hazard
Posts: 876
Registered: 28-6-2019
Location: Heerenveen
Member Is Offline
|
|
For me, waste processing and cleaning are different procedures.
Waste processing is much more dependent on the waste nature. Some organic compounds I use to kill ants in my backyard, many of them being quite toxic
or carcinogenic for humans are bio-degradable (there is no smell after 1-2 days). For heavy metals, I have nice pots when I collect them as residue.
As for cleaning, my best friends (in the order from most used ones to rarely used ones) are:
- tap water
- distilled water. I have a bottle for rinse and I return the water to this bottle. So, it can be used many many times.
- Sodium phosphate solution + pumice
- diluted HCl
- ethanol
- acetone
- cold 10% NaOH
- cold chromic acid
- hot 10% NaOH
As a last resort, I use the dirty flasks for doing some aggressive reactions, like H2SO4 distillation etc.
|
|
|
TheMrbunGee
Hazard to Others
Posts: 364
Registered: 13-7-2016
Location: EU
Member Is Offline
Mood: Phosphorising
|
|
Heavy metal salts I put in a large open container, mostly as solutions and let the solvents dry off naturally. Usually I do not mix different metal
salts, but If I have tiny quantities, they all go to non recoverable waste, with what I have no plan jet (I have a 5l container with about 150g of
solid unknown chemical mixture, that I would not touch pour down the drain or look at for too long). for large amounts of salts I collect them and
then recover as much as I can, discard the rest (<1g quantities might go into environment sometimes but I rarely do super toxic chemistry).
for uncleanable organic mess from glassware I use hydroxide/peroxide mix as strong as necessary or sometimes acid/peroxide.
Then again I never worried about invisible impurities, I see how d.water sticks to glassware, and if it sticks, its clean enough for me.
|
|
|
ManyInterests
National Hazard
Posts: 930
Registered: 19-5-2019
Member Is Offline
|
|
I got a pair of condensers (an Allihn and a Dimroth) but I got them when I went dumpster diving. The glass is completely intact, no usage crud or
anything visible, just storage grime. The Allihn condensor was filled small boiling chips (it took a lot agitation to get them out) while the Dimroth
had nothing but small amounts of grime.
So far I washed them soap and water, as well as a solution of sodium carbonate in order to neutralize any acids. After the wash the tube is quite
clean, but I need to run some water through the cooling jacket/spirals to clean those out as well.
I have no idea what the previous owner used them for. I want to clean them as completely as possible in case the previous owner didn't clean it
correctly before tossing it out. I found them amid all sorts of other neat chemistry equipment. But I only kept the condensers.
| Quote: | As for cleaning, my best friends (in the order from most used ones to rarely used ones) are:
- tap water
- distilled water. I have a bottle for rinse and I return the water to this bottle. So, it can be used many many times.
- Sodium phosphate solution + pumice
- diluted HCl
- ethanol
- acetone
- cold 10% NaOH
- cold chromic acid
- hot 10% NaOH |
I don't have any phosphates or dichromates, what would those neutralize?
I plan on using the condensers to make nitric acid and refluxing nickel nitrate. The Allihn for the reflux, the Dimroth for the nitric acid.
|
|
|
Herr Haber
International Hazard
Posts: 1236
Registered: 29-1-2016
Member Is Offline
Mood: No Mood
|
|
Tap water
Distilled water
Isopropanol (cheaper than ethanol here)
Acetone
I use salt or sand as a mechanical abrasive.
It is quite unusual if I have to go beyond those.
I have used H2SO4 in the high 150, low 200°c. Never was brave enough to add H2O2
The spirit of adventure was upon me. Having nitric acid and copper, I had only to learn what the words 'act upon' meant. - Ira Remsen
|
|
|
teodor
National Hazard
Posts: 876
Registered: 28-6-2019
Location: Heerenveen
Member Is Offline
|
|
Quote: Originally posted by ManyInterests  |
I don't have any phosphates or dichromates, what would those neutralize?
I plan on using the condensers to make nitric acid and refluxing nickel nitrate. The Allihn for the reflux, the Dimroth for the nitric acid.
|
Sodium phosphate works similar to soap or washing powder, it is a general detergent that was a component probably of any washing powder in the past
but then it was prohibited as everything else (it cause the growth of duckweed or something like that in rivers). It is much easier to wash out than
household washing powder though.
A chromic acid solution is a universal all-hands cleaner for chemical glassware, but dichromates were prohibited (as everything else) so it is not
used in many labs anymore, but some people say piranha is equally good for cold washing. It destroys almost any organic and probably even carbon (very
hard places could be just carefully heated) and dissolves many insoluble salts but its usage requires some basic chemical experience of working with
concentrated sulfuric acid not to mention heating this acid during the preparation. If you have no any holes accidentally made with concentrated
sulfuric acid yet probably you should not try to start this way.
Making nitric acid is a good cleaning routine also. Depending on the concentration you can get different degrees of spotlessness. Just reject the
first 20ml of distillate (return it to the source flask). The general rule is: if some deposit on walls is not destroyed/dissolved by the liquid which
you distill it is not relevant and could stay there.
[Edited on 12-10-2021 by teodor]
|
|
|
ManyInterests
National Hazard
Posts: 930
Registered: 19-5-2019
Member Is Offline
|
|
that's good to know that nitric acid is a good cleaner. I will follow your recommendation and return the first 20ml to the original container.
One other question though, and I know it's going to sound a little weird but... a friend of mine had a 2 necked 1000ml boiling flask that I thought
would be better for distillations (allowing me to add the nitrates and sulfuric acid through the other neck and just plugging it without to remove or
install the joints afterward).
But he was using it for a bong. So I had to clean it extensively before hand. I soaked it with 500ml of 99% Isopropyl alcohol and filled in the rest
with water. I left it for 24 hours and then scrubbed the interior as much as I could until all internal stains were gone (those flexible necked
brushes are a godsend), after which I scrubbed it with dishsoap and water until it looked like new. Then I soaked for another 24 hours in 95% ethanol
alcohol (700ml) and filled it to the joints with distilled water. I had a stir bar in for an hour as well.
The thing is spotless now and should be clear of any THC. But I am wondering... I will need to return it to my friend after I am done with it. Since I
will be using it for making nitric acid, will I need to do any special cleaning for it afterward, or will washing it out with a sodium carbonate
solution be sufficient?
|
|
|
teodor
National Hazard
Posts: 876
Registered: 28-6-2019
Location: Heerenveen
Member Is Offline
|
|
ManyInterests, I don't recommend adding components to the distilling flask during the process of making the nitric acid.
My first experience with making nitric acid was unsuccessful and I would prefer to make something else if I could return to that day.
Could you please share more details about the experiments you plan to do with the acid because your questions puzzled me a bit?
|
|
|
ManyInterests
National Hazard
Posts: 930
Registered: 19-5-2019
Member Is Offline
|
|
My apologies. I want to make small quantities of energetic material. Specifically NHN (Nickel-Hydrazine Nitrate), picric acid, ammonium picrate (if
possible) DDNP (from picric acid), ETN, and RDX.
So I will need both fuming nitric acid and 65-70% nitric acid for these.
I made a picture of my setup so far (it needs a little improving).
Basically before I put the joints. I will put the quantity of KNO3 into the flask before putting the joint and condenser (and greasing all joints with
sulfuric acid). Just when I am about to start distillation I will power the quantity required of sulfuric acid through the funnel you see and then
close that with the joint plug I placed on the mantel. I will not add any further material once the distillation begins.
You mentioned to put the first 20ml back into the flask when distilling, this is what I plan on doing. At least during my first distillation.
Does nitric acid distillation produce any bucking or movement of the glassware? The setup as you see it is quite steady but I don't want anything
tipping over. for very obvious reasons.
My dimroth condenser cannot have any joints added, so it needs to drip directly into a container. I have several beakers that will work just nicely.
|
|
|
teodor
National Hazard
Posts: 876
Registered: 28-6-2019
Location: Heerenveen
Member Is Offline
|
|
ManyInterests, you don't need to return 20 ml to the flask during the distillation. Just keep it separately, so you can use it for the second run for
the fuming acid. Also, your setup is not safe enough for distilling the fuming acid. Try to use the vacuum type of receiver for that. Also clamps
could be damaged, so provide some additional fix for the condenser (piece of wire?). Also, make sure the thermometer adapter doesn't contain a
silicon/rubber part.
For cleaning the flask after the acid.
Put a little water or (better) sodium (bi)carbonate solution, close it and allow to stand to absorb nitric oxides. Then fill the flask with water to
the top to displace all fumes. Be careful at this step. Then wash 5 times or attach a piece of hose to a tap, turn the flask upside down and put hose
through one neck allowing water fountain to wash the internal surface.
You don't need any neutralization. Nitric acid is liquid so it just evaporates. If the glass is dry there is no acid.
|
|
|
ManyInterests
National Hazard
Posts: 930
Registered: 19-5-2019
Member Is Offline
|
|

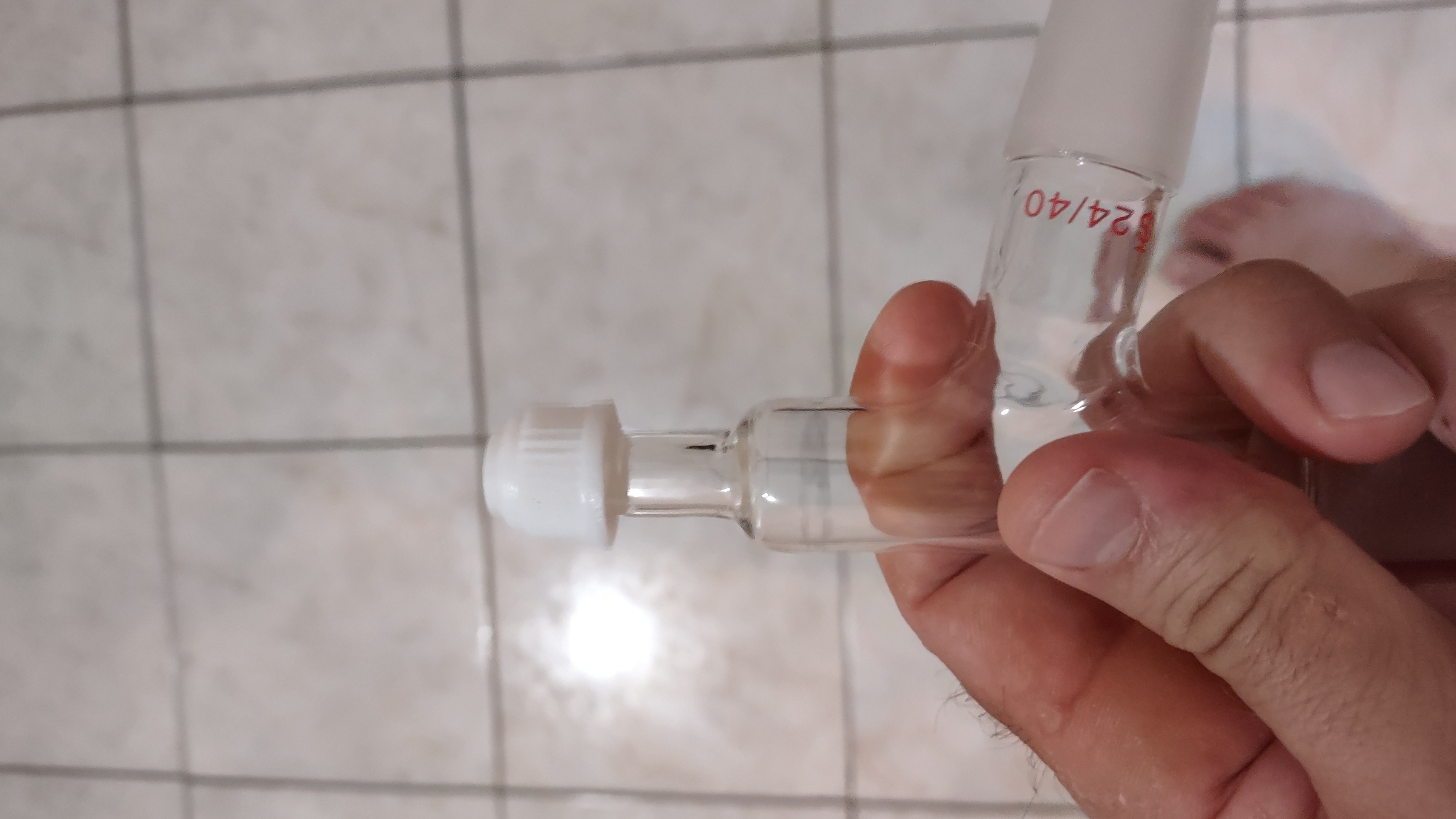

The joint at the top allows for a thermometer to be inserted, which I have and will use (as I cannot the mantle's own thermometer) It does appear to
have a seal on the top. But I have seen that exact type used by people distilling nitric acid (fuming and otherwise) by NileRed, and other chemistry
YouTubers. Links below:
https://youtu.be/QmCdrDLyNXQ
For NileRed While we don't see the absolute top. I don't know of any other joint that would allow for an insertion of a thermometer in any other way.
https://youtu.be/-vuLjbXh5Qc
For the Canadian Chemist. He uses the same kind of joint. I assume he has smaller glass funnels than I do, because I was not able to fit my funnel
through the top joint that I have.
| Quote: | Put a little water or (better) sodium (bi)carbonate solution, close it and allow to stand to absorb nitric oxides. Then fill the flask with water to
the top to displace all fumes. Be careful at this step. Then wash 5 times or attach a piece of hose to a tap, turn the flask upside down and put hose
through one neck allowing water fountain to wash the internal surface.
You don't need any neutralization. Nitric acid is liquid so it just evaporates. If the glass is dry there is no acid. |
That's good! Because that's how I also cleaned my glass after sulfuric acid purification. Also my glassware after making nitrocellulose (mixing KNO3
with sulfuric acid to make a nitrating mixture). I always have plenty of sodium carbonate because of how cheap and easy it is to make.

|
|
|
Herr Haber
International Hazard
Posts: 1236
Registered: 29-1-2016
Member Is Offline
Mood: No Mood
|
|
Just add the chilled acid after your nitrate, put everything in place, clamp the condenser aswell than all you have to do is adjust the temperature
and add Al foil to prevent heat loss and protect from light. Using this funnel makes it unnecessarily complicated. Put a stopper instead and make sure
it doesnt leak.
Your condenser is less than ideal for the task. Actually, it's probably the worst one. Get an adaptor to let the acid in a flask immersed in ice /
salt. Your lungs will thank you.
Do this outside or at least on the ledge of the window because I'm pretty sure you'd gas yourself with that setup no matter how experienced your are.
Making nitric acid takes a lot of time even with a good setup. Making *quality* nitric acid takes even longer.
The one thing that is certain is that the bong condenser will be absolutely clean.
That said, to clean that part I would first fill it with vegetable oil and an abrasive such as sand. Then I'd do the same with ethanol / isopropanol.
If it's not clean after that, hot nitric acid will definitely do the trick.
The spirit of adventure was upon me. Having nitric acid and copper, I had only to learn what the words 'act upon' meant. - Ira Remsen
|
|
|
ManyInterests
National Hazard
Posts: 930
Registered: 19-5-2019
Member Is Offline
|
|
I have another Allihn condenser (bulb condenser) that I can fit another adapter to. If that is your recommendation I will do so. This is because I
have no adapter for the other condenser.
And yes, of course I will be doing it outside. I setup my balcony for such things and make sure that all my neighbors are not at home or asleep so as
not to cause any alarm. Safety is my number one concern.
Thank you.
[Edited on 13-10-2021 by ManyInterests]
|
|
|
Herr Haber
International Hazard
Posts: 1236
Registered: 29-1-2016
Member Is Offline
Mood: No Mood
|
|
An Alhin condenser would be a much better choice. Not "the best" but sill way better than the current one.
I recommend an adaptor anyway. Look for Deschem on eBay it's a really good and cheap source. What you'll spend there you'll save it by getting more
acid.
The spirit of adventure was upon me. Having nitric acid and copper, I had only to learn what the words 'act upon' meant. - Ira Remsen
|
|
|
ManyInterests
National Hazard
Posts: 930
Registered: 19-5-2019
Member Is Offline
|
|
Thanks, but I think I have all the adapters I need. They fit in quite neatly and with clamps they are rocksteady (I will of course grease them with
sulfuric acid before clamping them.
I need to also mention here that I will be buying a respirator. I am nitrating a bit of nitrocellulose right now using 98% purified H2SO4... and I
need to say this, while the fumes from the drain opener acid were tolerable, the ones from the pure acid were unbelievable!
I had to leave my apartment ( did the nitration on my balcony, but the way the wind was blowing it blew the fumes directly into my place) for a while
to let my apartment ventillate because it was unbearable. I feel like it might have done something to me, but it'll be better.
I need a respirator! Even if I make my nitric acid in the balcony and close the door (I have the power switch in side so I can switch it off as needed
without opening the door) and never need to go outside to see if it done. I don't think I can do any nitration without being exposed to some gasses. I
need to have that thing on me at all times. I will do them all on my balcony, but I need to keep my apartment door closed to prevent any gasses from
coming in.
|
|
|
teodor
National Hazard
Posts: 876
Registered: 28-6-2019
Location: Heerenveen
Member Is Offline
|
|
And what is "the best" in your opinion? I personally used Dimroth condenser for many distillations (including WFNA) and didn't see why it could be not
"the best". It would be interesting to know what I missed.
Also, as a receiver, it is convenient to use 2 necks flask.
I wouldn't use sand in any cleaning routing personally, I think it can scratch glass and I don't like scratched glassware, but this is a matter of
preference.
[Edited on 15-10-2021 by teodor]
|
|
|
ManyInterests
National Hazard
Posts: 930
Registered: 19-5-2019
Member Is Offline
|
|
| Quote: | | And what is "the best" in your opinion? I personally used Dimroth condenser for many distillations (including WFNA) and didn't see why it could be
not "the best". It would be interesting to know what I missed. |
Yeah, I don't know what 'the best' would be. Every chemistry YouTuber who made Fuming HNO3 or 68% HNO3 had far more basic setups than that. Just a
simple liebig condenser with cold water flowing through for cooling. From the flask to the Alhin consenser I have the thermometer attachment joint,
and on the other end I will have a vacuum joint. The vacuum part is optional, but even without the pump attached it makes a very firm seal with the
receiving flask.
The only thing I need to do is raise the mantle on a platform, because the receiving flask will not fit.
|
|
|
teodor
National Hazard
Posts: 876
Registered: 28-6-2019
Location: Heerenveen
Member Is Offline
|
|
I just have the impression that the Dimroth condenser is more effective than Liebig. I had some issues only with diethyl ether distillation, for
anything else it works pretty well. The completeness of condensation in Dimroth is more visible than in Liebig - you can see where is the end of the
condensation area inside the condenser - some part of the spiral will be covered by drops and after that it is clear, so you see how complete the
condensation is. With diethyl ether you see the drops covered the full length of the spiral - that's a signal that some ether escapes condensation.
[Edited on 16-10-2021 by teodor]
|
|
|
Herr Haber
International Hazard
Posts: 1236
Registered: 29-1-2016
Member Is Offline
Mood: No Mood
|
|
A Graham maybe but a Dimroth ? I'd use a Liebig for the task at hand.
The spirit of adventure was upon me. Having nitric acid and copper, I had only to learn what the words 'act upon' meant. - Ira Remsen
|
|
|
Fyndium
International Hazard
Posts: 1192
Registered: 12-7-2020
Location: Not in USA
Member Is Offline
|
|
Dimroths are far superior compared to liebigs. If you want a good combo, use dimroths as condensers and put a graham after it as a cooler unit. Better
yet, use two coolant reservoirs, normal one for dimroth and a cryo-coolant (either salt-ice or CaCl2 solution) for graham.
I used this kind if setup when I dehydrated reactions under vacuum. The water goes freely through any single stage condenser setup, no matter how cold
coolant you use. I first used a dimroth as a condenser with snow-ice water(winter time), then a graham as a cooler unit with separate, but same
composition coolant to bring the condensate as cold as possible. The 3-neck receiver flask was also immersed in a bucket of ice water. Finally, the
vacuum outlet was put on top of a liebig condenser, with the graham circuit, so any residual vapors would face as much resistance as possible, and
finally the pump had a -30C CaCl2 solution coldfinger. I managed to keep the oil clear over multiple hours of distillation.
|
|
|
SWIM
National Hazard
Posts: 970
Registered: 3-9-2017
Member Is Offline
|
|
That doesn't look like a Dimroth in that picture.
It looks like a coil and tube condenser, which has both the outer jacket of a Liebig and the inner coil of a coil condenser.
These are very efficient, and expensive, condensers, and they have a very high internal surface area to volume ratio.
This one is unusual in that the coolant is entirely fed through the inner coil and then goes through the outer jacket.
Most coil and tube types I've seen are built with an internal nozzle which directs some of the coolant through the coil while the rest runs through
the jacket.
Why can't you put joints on it?
Does that drip extension on the end foul the joints?
Some coil and tube condensers are designed specifically to be used vertically with the output going right into a flask.
Not sure why this is but I've got an old one with an integral drip tip that can only be used vertically because otherwise it would trap lots of
distillate in the condenser.
Mine has an internal drip tip that would be tough to remove cleanly, but that external tip on yours could be cut or ground off some day if you've got
a Dremel tool. A little work with wet sanding paper will smooth it out.
EDIT: Maybe I missed it and somebody already mentioned this, but in addition to an adaptor between the condenser and collection flask you can add a
hose (not rubber, some more inert plastic) on the vacuum take-off for the adaptor and run it into a gas trap to absorb those toxic gasses. Or a
scrubber.
There shouldn't be any smell getting out during the distillation, except possibly a very slight one.
Learning to set up your apparatus for proper safety is vital.
Get those vapors under control before they blow into your neighbor's apartment and the emergency services get called.
[Edited on 13-11-2021 by [SWIM]
[Edited on 13-11-2021 by SWIM]
[Edited on 13-11-2021 by SWIM]
|
|
|
teodor
National Hazard
Posts: 876
Registered: 28-6-2019
Location: Heerenveen
Member Is Offline
|
|
I use Dimroth horizontally, it is very efficient for distillation at atmospheric pressure. Yes, it can keep a few milliliters (~2 ml) of distillate
when it is used horizontally but I don't see it as a big problem because usually, I use it for larger volumes than my Liebig (and my Liebig also holds
some distillate when used horizontally).
I am interested to know how do you measure the efficiency when you say that Dimroth is not efficient.
I suspect it could be only the case when the volume of vapors / stream speed is very fast, which is rarely the case with my heat sources.
[Edited on 15-11-2021 by teodor]
[Edited on 15-11-2021 by teodor]
|
|
|
Herr Haber
International Hazard
Posts: 1236
Registered: 29-1-2016
Member Is Offline
Mood: No Mood
|
|
Maybe it's just in my head because I was tought Dimroths are for reflux and never questioned beyond that
I may have used the Allihn a couple of times when it was closer than a Liebig but dont tell anyone!
To be honest, I think the question of efficiency is related to what you are going to do with your condenser. The big volume of coolant inside a Liebig
suits my needs most of the time. I get vapors when I dont cool enough.
On my to-do list are a couple of Soxhlet extractions. My gut just tells me I'll want something with a bigger volume for vapours than a Liebig.
But right now... I have to find something to do with what Santa sent. A beautiful Davies !
The spirit of adventure was upon me. Having nitric acid and copper, I had only to learn what the words 'act upon' meant. - Ira Remsen
|
|
|
arkoma
Redneck Overlord
Posts: 1761
Registered: 3-2-2014
Location: On a Big Blue Marble hurtling through space
Member Is Offline
Mood: украї́нська
|
|
| Quote: Originally posted by ManyInterests | My apologies. I want to make small quantities of energetic material. Specifically NHN (Nickel-Hydrazine Nitrate), picric acid, ammonium picrate (if
possible) DDNP (from picric acid), ETN, and RDX.
So I will need both fuming nitric acid and 65-70% nitric acid for these.
I made a picture of my setup so far (it needs a little improving).
Basically before I put the joints. I will put the quantity of KNO3 into the flask before putting the joint and condenser (and greasing all joints with
sulfuric acid). Just when I am about to start distillation I will power the quantity required of sulfuric acid through the funnel you see and then
close that with the joint plug I placed on the mantel. I will not add any further material once the distillation begins.
You mentioned to put the first 20ml back into the flask when distilling, this is what I plan on doing. At least during my first distillation.
Does nitric acid distillation produce any bucking or movement of the glassware? The setup as you see it is quite steady but I don't want anything
tipping over. for very obvious reasons.
My dimroth condenser cannot have any joints added, so it needs to drip directly into a container. I have several beakers that will work just nicely.
|
| Quote: | EDIT: Maybe I missed it and somebody already mentioned this, but in addition to an adaptor between the condenser and collection flask you can add a
hose (not rubber, some more inert plastic) on the vacuum take-off for the adaptor and run it into a gas trap to absorb those toxic gasses. Or a
scrubber.
There shouldn't be any smell getting out during the distillation, except possibly a very slight one.
Learning to set up your apparatus for proper safety is vital.
Get those vapors under control before they blow into your neighbor's apartment and the emergency services get called. |
I'd be a bit nervous. Two things--stands and clamps to hold the glass (shit happens, and an elbow in the wrong place mid run would be disastrous, and
a vacuum take off with a hose venting ELSEWHERE or into sat NaOH solution along with a joint ware receiver. Nitric Acid is no joke and neither are
those lovely NO2 fumes.
ON TOPIC
The flask will be sparkling after you get the sulfate rock out of it.
[Edited on 12-30-2021 by arkoma]
"We believe the knowledge and cultural heritage of mankind should be accessible to all people around the world, regardless of their wealth, social
status, nationality, citizenship, etc" z-lib
|
|
|
crow6283
Hazard to Self
Posts: 60
Registered: 14-1-2018
Member Is Offline
Mood: No Mood
|
|
A little solvent, a little detergent, and a little elbow grease.
Alconox is a great detergent.
I think the best trick to keeping glassware clean is to clean it as promptly as possible. 90% of chemistry is waiting - perfect time to do some
dishes. Everything else just comes with experience - what solvents to use under which circumstances, whether an acid or base is needed.
A good drying rack is super important too, along with an excess of various sized brushes. Store glassware with a bit of aluminum foil or anything
else convenient covering the open ends so dust doesn’t get in there. Make good use of tools you already. If I have to clean something and get it
back into action quickly, for instance a flask, I clamp it to a stand or the lattice along with a bit of hose coming from the air compressor line in
the hood to help evaporate any moisture quickly (if it’s unwanted). Little stuff like that.
Ultrasonic baths in fairly useful sizes are available from eBay for good prices these days made in China. Run a hose from the hot water from the
supply line over to it so you can fill it up directly, rinse it out, and then use another hose on the drain right into your sink so you can make all
this really quick and easy.
|
|
|
| Pages:
1
2 |
![[*]](images/xpblue/default_icon.gif){kind=icon}
