Refinery
Hazard to Others
Posts: 371
Registered: 17-2-2014
Member Is Offline
Mood: Still
|
|
Why bokakob style columns are not used?
While introducing myself to alcohol distillation, I came up with the well known bokakob design. It is very simple and effective method of reflux
fracional distillation. See picture attached.
Why similar devices are not used in chemistry? Only column distillations without any reflux are employed, and it appears that without reflux it is
either impossible or extremely time consuming to separate pure products.

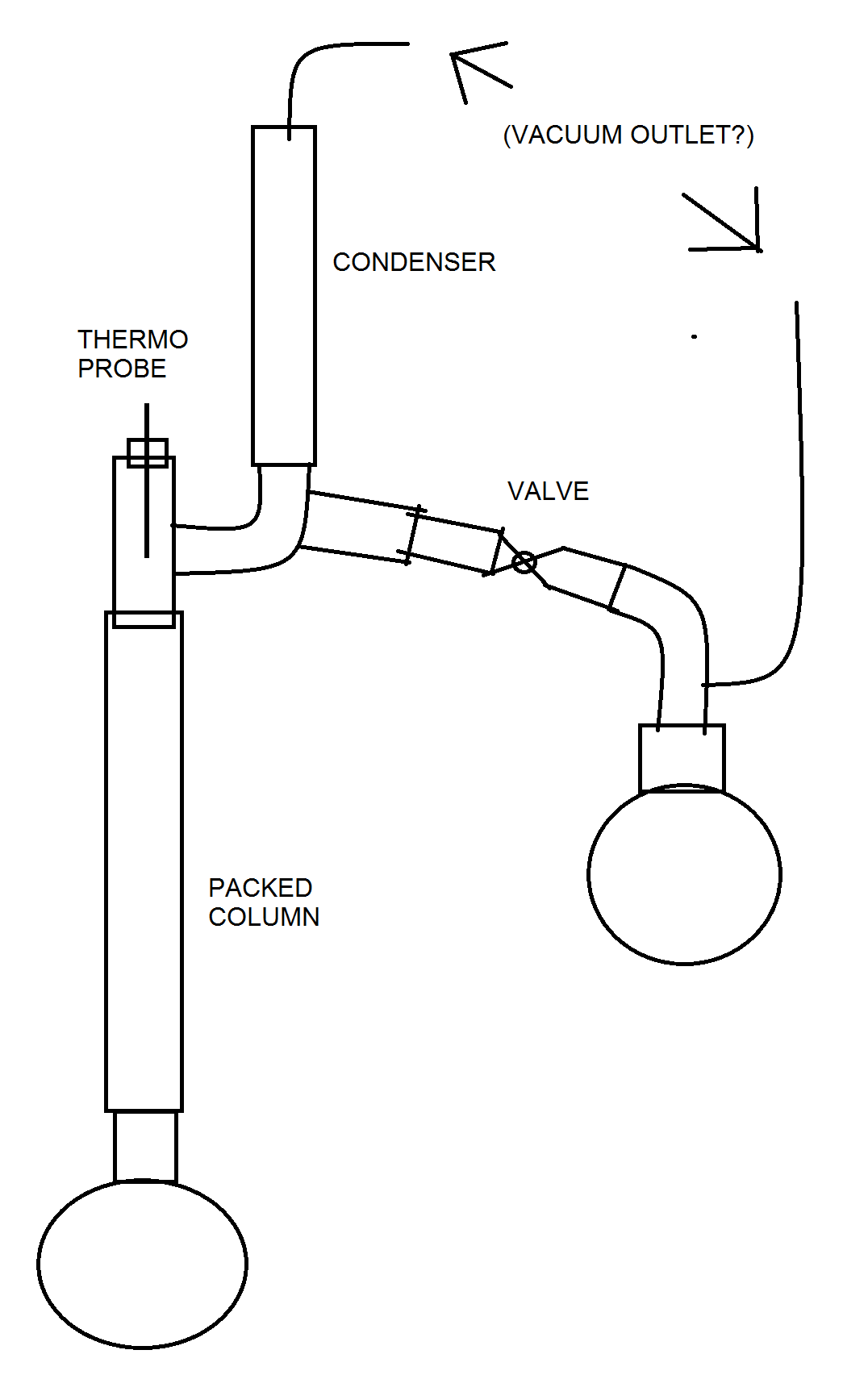

I came up with an idea to use claisen type still head, put small condenser on top of the second head and a packed column under it, above the reaction
flask, and apply a valve before the collection tube. This would allow the condensate to flow back to the packed column and cause reflux, and the
enriched condensate would collect in the extraction head, which of it flow rate can be adjusted with the valve. I suppose a vacuum could be pulled via
condenser and rec flask as per usual due to valve?
|
|
|
Metacelsus
International Hazard
Posts: 2539
Registered: 26-12-2012
Location: Boston, MA
Member Is Offline
Mood: Double, double, toil and trouble
|
|
Quote: Originally posted by Refinery  |
Why similar devices are not used in chemistry? Only column distillations without any reflux are employed, and it appears that without reflux it is
either impossible or extremely time consuming to separate pure products. |
No, reflux splitter heads on fractional distillation columns are commonly used. I think there was a post here about them; I'll try to find it.
Edit: See DFJ90's post from this thread: http://www.sciencemadness.org/talk/viewthread.php?tid=38826
[Edited on 2020-4-30 by Metacelsus]
|
|
|
Texium
Administrator
Posts: 4581
Registered: 11-1-2014
Location: Salt Lake City
Member Is Offline
Mood: PhD candidate!
|
|

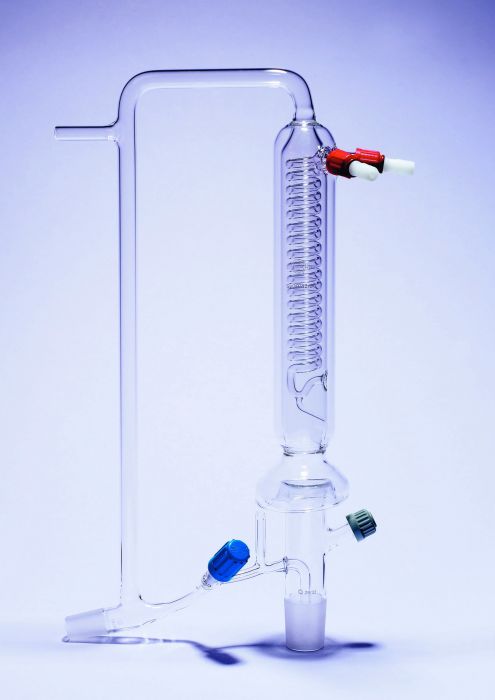

Here you go, a very expensive lab version of what you described!
|
|
|
Fery
International Hazard
Posts: 1018
Registered: 27-8-2019
Location: Czechoslovakia
Member Is Offline
|
|
There is a lab glass producer (Kavalier, glass product name Simax) in my country producing these very expensive glass parts:
distillation head approx 400 EUR including VAT
https://www.verkon.cz/hlava-destilacni-simax/
distillation column, jacketed, filled with Rashig rings
https://www.verkon.cz/kolona-destilacni-dle-hempla-s-naplni-...

Recently I ordered 500, 750, 1000 mm long columns without rings as I've already bought 1 kg of Raschig rings quite cheaply.
The distillation head is still on my wish list of what to buy in future.
|
|
|
Fulmen
International Hazard
Posts: 1716
Registered: 24-9-2005
Member Is Offline
Mood: Bored
|
|
Don't forget that most setups employ an air cooled column, this provides the reflux. It will however suffer from the same limitations as the
"bokakob", it's hard to get a specific reflux ratio.
About 25 years ago I had the opportunity to test the coolest still ever. It had a steam powered boiler, a plate column appr 15cm in diameter and maybe
3m tall, and a variable reflux head. 100% glass.
We're not banging rocks together here. We know how to put a man back together.
|
|
|
G-Coupled
Hazard to Others
Posts: 287
Registered: 9-3-2017
Member Is Offline
Mood: Slightly triturated
|
|
| Quote: Originally posted by Fulmen | | About 25 years ago I had the opportunity to test the coolest still ever. It had a steam powered boiler, a plate column appr 15cm in diameter and maybe
3m tall, and a variable reflux head. 100% glass. |
In what context did you come across that cool piece of kit?
|
|
|
Refinery
Hazard to Others
Posts: 371
Registered: 17-2-2014
Member Is Offline
Mood: Still
|
|
Correct me if I'm wrong, but reflux ratio and efficiency can be improved by insulating the column, preferably with vacuum. I actually planned on
tigging an insulating vacuum mantle on my still and boiler to boost efficiency. Thermal radiation and conductive losses increase fuel consumption
greatly during long reflux runs.
I thought I would be reinventing the wheel, but I find it fancy that I actually already have the frac setup on hand as I described it. Next, I should
test it out. On the other hand, I don't have anything specific to fraction with. For alcohol, I have my full-sized boka, which I can easily use to
produce azeo EtOH in much, much higher capacity than any tabletop still. On the other hand, just distilling OTC denatured spirits is the easiest and
cheapest way around.
I suppose they use these purpose-built 3m glass columns in pharmaceutical and other specialty industries. My 100cm packing, 75mm dim boka can deliver
about a liter of azeo per hour, so I suppose 3000/150 still could do that 5-6 times over.
|
|
|
Fulmen
International Hazard
Posts: 1716
Registered: 24-9-2005
Member Is Offline
Mood: Bored
|
|
G-Coupled: At a company training facility. You should have seen the look on our faces when we saw that thing  The reflux head was a moveable baffle that directed the condensation either back to the column or to a takeoff spigot.
This was put on a timer to control the ratio. Come to think of it I saw that setup at a local school a few years ago, so it's still around.
Refinery: An overhead condenser and insulated column will of course be more efficient, but a cooled column does work OK. It will of course be harder
to maintain a constant reflux ratio, and the column will not be as efficient or have the same capacity.
We're not banging rocks together here. We know how to put a man back together.
|
|
|
