I think that mixture is normally referred to as blasting gelatine, though I see on the internet the terms gelignite and blasting gelatine often seem
to be used interchangeably. Gelignite is a high gelatine content dynamite with an absorbent dope of powdered nitrate and fuel from what I understand.
"A risk-free world is a very dull world, one from which we are apt to learn little of consequence." -Geerat Vermeij
|
|
|
Hennig Brand
International Hazard
Posts: 1284
Registered: 7-6-2009
Member Is Offline
Mood: No Mood
|
|
Quote: Originally posted by Hennig Brand  | I think it might be playing with fire a little bit, so to speak, but as long as the addition rate was carefully controlled, and the temperature was
closely monitored, I don't see any problems other than the process taking longer than if all the high powered cooling equipment were installed. With
good agitation glycerine doesn't hang around in the nitration mixture and then all react at once like sometimes happens with other nitrations.
Glycerine nitrates very quickly and completely even at very low temperatures. The reactions are very exothermic, however, and the temperature must be
watched like a hawk and additions must be slow and controlled. A big bucket of cold water must be handy to drown the reaction if controlling the
temperature becomes impossible (which should only happen if the process was rushed and/or there was a lack of cooling for the size of the reaction).
Obviously the bigger one goes the more dangerous it becomes, especially if there is a lack of understanding about
the process.
That glass apparatus above is very neat, but I don't think it is necessary for 200g or so of NG. It would probably be very convenient though. I have
made about a cup (~250mL) of NG before in a glass coffee pot. Other than my nerves it all went fine. It took a good couple of hours to add all the
glycerine, though, and I was stirring with a glass rod by hand (I now only swirl for safety). It wouldn't be very hard to rig up a Teflon paddle
driven by a cordless drill (powered by a mains fed power supply). With a good ice bath or salt ice bath and the Teflon paddle working vigorously
cooling should be fantastic through a thin walled glass round bottomed vessel.
Thermal Conduction Through Glass
I think you have a point about the different materials and thermal conductivity, but I don't think it is as much of an issue as you think at these
small scales.
Thermal Conductivities
Borosilicate Glass: 1.14w/m.K (camglassblowing.co.uk)
Stainless Steel: 16w/m.K (Engineeringtoolbox)
Lead: 35 w/m.K (" ")
Carbon Steel: 43w/m.K (" ")
Cast Iron: 55w/m.K (" ")
So yes, glass really stinks in the thermal conductivity department. However, I still don't think it is much of a problem at the scales we are
discussing.
From the reaction numbers in the last post, a 1L reaction mixture can accommodate the nitration of about 247g of glycerine. The spherical vessel will
be assumed to be twice as large as needed and only using half its surface area for cooling to the ice bath.
Q/t = [K * A * (TH - TC)] / d
Heat conduction/time = [Thermal conductivity * Area * (Temperature hot side - Temperature cold side)] / Thickness of sidewall
Assume that a 15C temperature differential is maintained. Just measured a coffee pot and it was 2mm thick or less; will use 2mm wall thickness.
Q/t = [1.14w/m.K * 0.03838m^2 * (25C - 10C)] / (0.002m)
Q/t = 328watts or 328J/s
Total Heat Produced = 247g Glycerine * (1.43kJ/1g Glycerine) = 353kJ
Time needed to transfer all heat using a 15C temperature differential = 353kJ / (0.328kJ/s) = 1077s or 17.9minutes
As long as the temperature differential was maintained at least 15C from one side of the glass sidewall to the other, 247g of glycerine could be
nitrated, producing about 500g of NG, and the heat produced could be transferred in less than 18 minutes.
I can see how this is maybe starting to push the limits, however, a much greater temperature differential could be maintained which would increase the
rate of heat transfer.
One of the important points to take note of; if a vessel with low conductivity, such as one made of glass, is used the ability to deal with a
temperature/energy surge is less.
[Edited on 12-1-2015 by Hennig Brand] |
I used the wrong heat transfer equation above which does change the result by a small amount. The equation used was for a flat wall and what I should
have used was the equation for a sphere.
Q/t = (T1 - T2) / Rsph
where:
Rsph = (r2 - r1) / (4 * pi *r1 * r2 * k)
Rsph is the conductive resistance of the spherical layer
Using a 1L reaction mixture in a 2L spherical flask:
V = 4/3 * pi * r1^3
r1 = 0.0782 m
wall thickness = 2mm
r2 = 0.0802m
Rsph = (0.0802m - 0.0782m) / (4 * pi * 0.0802m * 0.0782m * 1.14w/m.K)
Rsph = 0.02226 C/w
Q/t = (25C - 10C) / (0.02226C/w)
Q/t = 673.8w
For half of surface area used:
Q/t = 673.8w/2 = 337w or 0.337 kJ/s
Time needed to transfer all heat using a 15C temperature differential = 353kJ / (0.337kJ/s) = 1047s or 17.5minutes
This actually improves the situation by a little bit.
In case anyone was interested here are the equations for one dimensional, steady state, heat conduction for a cylindrical layer as well:
Q/t = (T1 - T2) / Rcyl
Rcyl = ln(r2 - r1) / (2 * pi * k * L)
[Edited on 24-1-2015 by Hennig Brand]
"A risk-free world is a very dull world, one from which we are apt to learn little of consequence." -Geerat Vermeij
|
|
|
Hennig Brand
International Hazard
Posts: 1284
Registered: 7-6-2009
Member Is Offline
Mood: No Mood
|
|
| Quote: Originally posted by Hennig Brand |
In case anyone was interested here are the equations for one dimensional, steady state, heat conduction for a cylindrical layer as well:
Q/t = (T1 - T2) / Rcyl
Rcyl = ln(r2 - r1) / (2 * pi * k * L)
|
That last equation should read:
Rcyl = ln(r2/r1) / (2 * pi * k * L)
Man I need to get my shit together.
"A risk-free world is a very dull world, one from which we are apt to learn little of consequence." -Geerat Vermeij
|
|
|
ecos
Hazard to Others
Posts: 464
Registered: 6-3-2014
Member Is Offline
Mood: Learning !
|
|
Interesting equations for real
I am really sorry if my question would look simple : is it possible to provide an example for 1 L so we can know how to use these equations ?
|
|
|
Bert
Super Administrator
Posts: 2821
Registered: 12-3-2004
Member Is Offline
Mood: " I think we are all going to die. I think that love is an illusion. We are flawed, my darling".
|
|
| Quote: Originally posted by Hennig Brand | | I think that mixture is normally referred to as blasting gelatine, though I see on the internet the terms gelignite and blasting gelatine often seem
to be used interchangeably. Gelignite is a high gelatine content dynamite with an absorbent dope of powdered nitrate and fuel from what I understand.
|
Blasting gelatine is usually just NG, enough NC to gell and bring OB to neutral and usually a small amount of antacid such as calcium carbonate. It's
high velocity, good for hard rock blasting, can cut steel & do similar jobs- But it tends to lose sensitivity to initiation over time.
Gelignites are active base dynamites where the NG has been pre gelatinized with a small amount of NC before mixing into the dope, whatever mixture of
powdered oxidizer(s)/fuel(s)/antacid are being used. They don't lose sensitivity in storage in my experience-
Amonium nitrate based gelignite is a nice versatile explosive, works fine in a range from 10% to 60%+ NG, depending on how fast you need it to shoot.
Rapopart’s Rules for critical commentary:
1. Attempt to re-express your target’s position so clearly, vividly and fairly that your target says: “Thanks, I wish I’d thought of putting it
that way.”
2. List any points of agreement (especially if they are not matters of general or widespread agreement).
3. Mention anything you have learned from your target.
4. Only then are you permitted to say so much as a word of rebuttal or criticism.
Anatol Rapoport was a Russian-born American mathematical psychologist (1911-2007).
|
|
|
Hennig Brand
International Hazard
Posts: 1284
Registered: 7-6-2009
Member Is Offline
Mood: No Mood
|
|
No problem, r1 (inside radius) above was found by using 0.002m^3 (2L) for volume in the reaction flask/sphere volume equation. Outside
radius was found by adding wall thickness (0.002m (2mm) in the example) to the inside radius. It was assumed that the flask would be half full (1L
reaction mixture). Once the rate of heat transfer was found for the 2L flask/sphere it was divided by 2 to get the rate of heat transfer for the 1L
reaction mixture. In reality there could be some heating or cooling at the surface of the liquid reaction mixture, inside the flask, but what was done
should still be a close approximation of steady state heat transfer with a continuous 15C temperature differential. So the above was an example for a
1L reaction mixture.
Bert, that was more or less my understanding of blasting gelatin and gelignite as well.
[Edited on 27-1-2015 by Hennig Brand]
"A risk-free world is a very dull world, one from which we are apt to learn little of consequence." -Geerat Vermeij
|
|
|
Hennig Brand
International Hazard
Posts: 1284
Registered: 7-6-2009
Member Is Offline
Mood: No Mood
|
|
Volume & Area Equations for Partially Filled Spherical Vessels
Notice how above I calculated the rate of heat transfer for a full 2L flask and then simply divided by two for the assumed 1L contents. This is a
special case, since 1L would be half full and because of symmetry the surface area is also halved. Normally the spherical vessel used would not be
exactly half full, however, and the relationship between volume and area is not as simple.
Here are a couple of equations which could be useful to someone trying to perform heat transfer calculations based on a partially filled spherical
vessel/flask.
V = 1/3 * pi * H^2 * (3 * R - H)
A = 2 * pi * R * H
where:
V = Volume of contents in partially filled spherical vessel
A = Inside Surface Area of curved surface, next to contents, of partially filled spherical vessel
H = Height of contents in partially filled spherical vessel
R = Inner Radius of spherical vessel
Equations for other shapes can be found too, in texts or online.
[Edited on 28-1-2015 by Hennig Brand]
"A risk-free world is a very dull world, one from which we are apt to learn little of consequence." -Geerat Vermeij
|
|
|
ecos
Hazard to Others
Posts: 464
Registered: 6-3-2014
Member Is Offline
Mood: Learning !
|
|
Hi Hennig,
I always go through your equations and got lost easily  , As I understand you try
to calculate the heat transfer or heat generation due adding NG with acids into ice ! , your first equations says we need ice with volume at least 6
times the volume of mixture (NG + acids)
I didnt see any equations showing the required temp of ice+water!.
if someone used water with temp = 5 degrees instead of ice, would that be risky ?
|
|
|
Bert
Super Administrator
Posts: 2821
Registered: 12-3-2004
Member Is Offline
Mood: " I think we are all going to die. I think that love is an illusion. We are flawed, my darling".
|
|
If you have ENOUGH cold water, and the reaction vessel configuration and rate of addition allow the heat to be removed, it will be possible to prevent
a run away. Determining in advance HOW MUCH ice and WHAT SHAPE/SIZE reaction vessel is what all the engineering math earlier was about. You only need
to keep the charge below someplace around 20 C, but colder gives more margin for error-
The key difference in starting with cold water: there is a substantial amount of energy required to MELT the ice. You're going to need substantially
MORE cold water than ice, even comparing liquid water at .001 ºC, to solid ice at -.001 ºC.
Water heat of fusion: 334J/g (334kJ/kg)

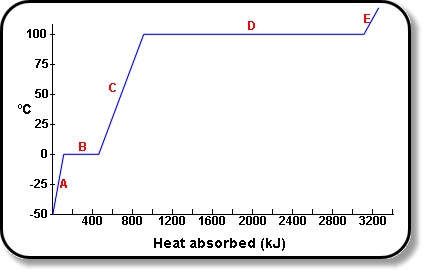

See area "B" of graph below:
