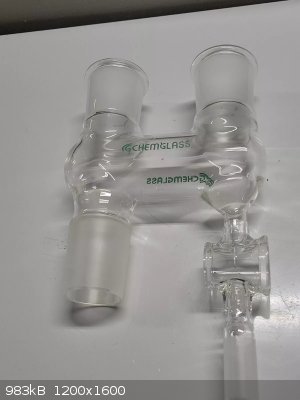

Can someone explain how this "Distilling Adapter" works?

Can someone explain how this "Distilling Adapter" is meant to work? It seems pretty different than any type of distillation adaptors I'm familiar with.



If I had to take a guess, I would say maybe it works like this:

Basically when the stopcock is open, then the condenser will deliver the distillate to the receiving flask. If its closed, then it will just overflow back into the distillation flask (ie:just refluxing). But again, this is just an assumption because idk how else it would work.

If I'm wrong, I'd like to know.

Thanks!

Quote: Originally posted by igxlabs

I've not seen this before but funny enough it's how I frequently arrange my apparatus. Thermowell / thermometer on the left port. Reflux condenser on the right. Depending on what you're trying to accomplish, you can let it reflux and then draw off through the stopcock. In my case I sometimes have the top of the reflux condenser going to other glass and condensers to catch what makes it out the top. I wish I had something like this because it would make my setup a bit more compact. But what I just described is only a guess, really.

Quote: Originally posted by igxlabs

Edit: Chemglass has a page for these: https://chemglass.com/adapters-distilling-process-reactors [Edited on 7-1-2025 by igxlabs]

Quote: Originally posted by Keras

This looks like a very-short version of a Dean-Stark apparatus, really.
