Properties. Pure calcium cyanamide is a colorless crystalline solid, soluble in water (2.5g in 100
ml of water at 25C) and insoluble in alcohol. It is volatile at high temperatures, sublimes at 1090C (at atmospheric pressure), and can be melted
under excessive pressure of nitrogen at 1340C. Dissolved in cold water, it is hydrolyzed forming a soluble acidic salt and calcium hydroxide (eq.1),
while hot water decomposes calcium cyanamide with formation of urea and calcium hydroxide (eq.2), and action of water steam at 110-115C causes release
of ammonia and formation of calcium carbonate (eq.3). At temperatures above 400C calcium cyanamide is readily oxidized by air (eq. 4).
2CaCN2 + 2H2O(cold) → Ca(CN2H)2 + Ca(OH)2
CaCN2 + 3H2O(hot) → Ca(OH)2 + CO(NH2)2
CaCN2 + 3H2O(steam) → CaCO3 + 2NH3
2CaCN2 + 3O2 → CaCO3 + 2N2
Pure calcium cyanamide contains 34.98% of nitrogen. The industrial product has greyish black color due to
contamination by carbon (9-13%), contains 55-65% of pure cyanamide and 18-24% of nitrogen. Additional contaminants (~5%) contain mainly silicic acid,
oxides of iron, magnesium and aluminum. In addition industrial calcium cyanamide contains 14-20% of calcium oxide and 2-5% of unreacted calcium
carbide.
Calcium cyanamide slowly reacts with moisture in the air forming urea, cyanamide, dicyandiamide and ammonia. Calcium
cyanamide is used in agriculture as a nitrogen fertilizer. In chemical industry calcium cyanamide was used to produce cyanides, guanidine and a large
variety of organic compounds.
Calcium cyanamide is toxic and acts mainly as a skin and lung irritant. Toxicity is relatively low but can be raised
greatly then combined with alcohol. Action of cyanamide dust followed by alcohol drinks cause severe poisoning accompanied by agonising suffocation.
This specific toxic effect is reason why cyanamide solutions are proposed for use in anti alcoholism drugs.
Preparation. Calcium cyanamide is produced on an industrial scale by fixation of atmospheric
nitrogen by calcium carbide at temperatures above 1000C in electric furnaces:
CaC2 + N2 → CaCN2 + C
Other methods of preparation include: action of ammonia on cyanogen chloride, melting of urea with metallic sodium,
high temperature reaction of hydrocyanic acid with calcium oxide and thermal decomposition of calcium cyanate. It is clear that only last one is
possible in home scale since calcium cyanurate can be readily produced by melting urea with calcium oxide or hydroxide, but this method require some
work to gain access to high temperature.
The process consists of two main stages – in the first stage is formation of calcium cyanate by melting urea with
calcium oxide. Thermal decomposition of urea is not a simple process and can produce wide variety of products, depending from reaction conditions and
timing, but in presence of alkali it goes almost exclusively to cyanate direction. Mechanism of cyanate formation can be expressed by the following
reactions:
1. 3CO(NH2)2 → 3HOCN + NH3
2. CaO + 2HOCN → Ca(OCN)2 + H2O
3. HOCN + H2O → CO2 + NH3
As one can see, theory requires 3 moles of urea for 1 mole of calcium oxide, since one molecule of cyanic acid is
decomposed by water liberated in neutralization of calcium oxide. Reaction takes place at temperatures above urea melting point (120 - 350C) and
causes formation lots of ammonia gas, accompanied by intensive foaming of the melted mixture. When the process is nearing completion the reaction
mixture re-solidifies due to formation of calcium cyanate which have higher melting point (decompose without melting at higher temperatures). In order
to produce calcium cyanamide, calcium cyanate produced is cooled, grounded in mortar and calcined at high temperature in absence of air oxygen.
The second stage (calcination of calcium cyanate) proceeds at temperatures about 700-900C, producing calcium
cyanamide and carbon dioxide (Eq.1 below). It should be noted that that air oxygen oxidizes produced cyanamide to carbonate (Eq.2 below), and process
should be carried out with very limited air contact or under protective gas atmosphere:
1. Ca(OCN)2 → CaNCN + CO2
2. 2CaCN2 + 3O2 → CaCO3 + 2N2
This reaction proceeds relatively slowly, and it takes about an hour to be substantially complete. Process also
require use of high temperature for extended amount of time and in relatively large volume and ideally can be preformed in laboratory electric
furnace. Since such equipment is not readily accessible for amateur chemist, below i will show you how you can build your own from commonly obtainable
components.
How to build simple 900C oven from OTC materials.
In general the oven consists of ceramic fireproof muffle tube, covered by nichrome wire heating element, covered by
radial fireclay layer which ensures that main heat flow is directed to opposite direction – into the muffle. To prevent heat losses to environment
and allow heating to high temperature the whole construction is protected by heat shielding. Temperature in the muffle is measured by means of
thermocouple. Heat wire is powered by AC power supply which allows voltage regulation – this will allow temperature regulation inside the muffle by
regulating heat flow from heat element.
1. The muffle is fireproof ceramic tube, stable at high temperature, high electric resistance and
able to withstand heat shock. Perfect materials include ZrO2/MgO/Al2O3 based ceramics. Tubes suitable for ovens can be obtained from many sources, for
example from high voltage safety fuses and other high voltage electric components. Tube i used for my oven is zirconium oxide based fireproof ceramic
tube with following dimensions: 90 mm long, 60 mm outer diameter, wall thickness 4 mm.
2. Nichrome heating element was made from 80:20 nickel-chromium alloy, with high electric
resistance, with low temperature-resistance dependence. Nichrome is best for the job because of high electric resistance, high working temperature
(about 1000C) and is stable to air oxidation at such temperatures. I used wire of 0.5 mm diameter, which was wound on the ceramic muffle with narrow
equally spaced turns. To make turns equally spaced the wire is wound in pairs with filament having approximately the same diameter, turns are made
contiguous to each other, and after all wire is coiled filament is carefully removed leaving coil with ideally spaced turns. Coil wire is fixed in
place by two nichrome wire rings spaced near the top and bottom edges of the tube. Don’t forget to provide the coil with some free nichrome wire at
the edges, to exit from the heating element and make contacts with the power supply output line. A photo of my coil is shown below, it has 81 Ohm of
electric resistance.
3.The next thing to do is to determine working voltage and appropriate power supply – those can
be calculated from required power of the heating element. If power is too high wire will simply burn out due to wire melting, if power is too low it
won’t reach high temperature – so optimum values have to be determined. First we need to select appropriate output power for our heat element; for
a small oven like ours 500 watts is a way to go. Now we can determine voltage required to reach desired level of power, by using Joule–Lenz and
Ohm’s laws:
As shown by the calculation above to reach desired power we need to use regulated AC power supply, capable of 200 V
output voltage and current of ~2.5A. To make sure our wire doesn't burn out at such current and determine maximum recommended wire temperature we must
check out current value against maximum allowed current:
As we can see from the table above, for our wire (0.5 mm diameter) maximum allowed current is about 3.5A with
recommended working temperature about ~1000C. Then combined with efficient heat shielding such heating a element would allow us to reach temperature
around 900C. Now we can derive the voltage limit for our heating element and maximum possible power. To do this we must substitute maximum allowed
current to Ohm’s formula to get voltage at Imax and then use the derived voltage to calculate power:
Resuming conclusions above we can now summarize parameters of our heating element: 500W voltage is ~200 V with
current of 2.5A, maximum allowed voltage is 283.5V with current 3.5A and ~1 KW power, recommended working temperature is <= 1000C.
4. Now that our heating element is ready we must complement it with heat shielding and make the
oven body. First we need to cover the nichrome wire with 0.5-1 cm layer of fireclay (I’ve used ~0.75mm thickness). Take some fire clay and add the
least water needed to reach plasticity and cover wire with a clay layer, then the wire is covered and the clay layer is smoothed by rolling on a
smooth surface. The whole device is placed into a kitchen oven to dry for 2 hours at ~250C. When initial drying is finished one can attach contacts of
nichrome wire to power supply and heat it slowly rising voltage to nominal and allow element to sit at this voltage for a while (0.5-1 hour) to
complete drying of the clay layer. Top and bottom caps of muffle can be made in the same manner, but can be worked out without such careful drying,
sitting for 2 hours at 250C kitchen oven is enough. The oven body can be made from an iron can. Carefully remove can cover, remove can contents and
drill two holes in can side walls, those will be required for nichrome wire contacts (my can was 10 cm in diameter and 12 cm height). Fill the bottom
of the can with a layer of magnesium oxide, and place heating element and its clay bottom in the can center, leading wire contacts through the drilled
side holes. Cover holes with contacts with clay to prevent wire short circuit over the oven body and fill the whole space between the heating element
and walls of can with powdered magnesium oxide. To complete the oven you must cover muffle with the clay cover you made earlier and cover whole thing
with iron cover of the can (this second cover will help in prevention of convective heat transfer caused by active air circulation), both covers are
made coaxial and provided with a drilled hole in the center which will be used for thermocouple temperature control.
5. Your oven is now almost ready to use. Just place it into a saucepan of wider diameter filled
with a wide layer of magnesium oxide to minimize heat transfer from oven can (I’ve used saucepan with ~15 cm diameter), place thermocouple to the
top cover of can and attach your oven to the corresponding power supply. I’ve used a laboratory auto transformer (0-220V AC, with maximum secondary
coil current of 4A). Now your heating device is fully operational. The device I’ve described is can reach a temperature of 900C in less then 1.5
hours. A photo of the working heating device is shown below:
Preparation of calcium cyanamide
Preparation of calcium cyanamide was performed according to US patent 5753199. Prepare a mixture of 56.4g (1 mol) of
pure finely ground calcium oxide (Note №1) and 180g (3 mol) of pure fine urea. Mixture is placed to saucepan and heated on a hotplate. As soon
as the urea melts the reaction starts, a lot of ammonia is evolved and mixture begin to foam (Note №2). After foaming subsides, mixture begins
to solidify and became unstirable. Then reaction mixture is completely solidified, heat source is turned off and still hot product is grounded to fine
powder. This yields about 134g of crude calcium cyanate (Note №3). Calcium cyanate is then placed to ceramic crucible, witch is covered by
closely fit clay lid, placed to electric furnace (also provided with closely fit cover) and is heated up to 750-800C for one hour (Note №4).
After this period furnace is turned off and is allowed to cool down, without opening furnace cover. Then temperature in furnace is downed to 150-200C,
furnace cover and crucible is removed and placed to cool on the air. Opened crucible is filled with spongy pinkish-white calcium cyanamide, with small
(about ¼ of crucible) bottom layer of product with grey color (Note №5). Total yield is 69.3g of high quality calcium cyanamide (86% from
theory), containing almost theoretical amount of nitrogen (~33-34%).
Notes:
1. It is essential to use pure calcium oxide, to prevent presence of alkali metal salts in reaction
mixture. Those at first will form corresponding cyanates, witch are unstable at high temperature of second – calcinations stage and will decompose
to form cyanide and oxygen. Even if relatively small amounts of sodium or potassium are present, final product can became much more dangerous since on
action of acids it will realize extremely dangerous and toxic hydrogen cyanide, in quantities easily detectable by smell from such reacting mixture,
or even from solid product itself.
2. Foaming of reaction mixture is very intensive and can easily overflow reactor wessel. This must
be taken to account then choosing volume of reactor. Foam can be sufficiently settled down by intensive mixing. Note that moistured source materials
will not result in even more intensive foaming but will also reduce overall yield due to increased moisture decomposition of cyanic acid.
3. This quantity is larger then theoretical (134g vs 124g theory), this is result of the fact that
solidification and drop of reaction rate occur earlier that source products are completely reacted. It was found that continue of heating after
solidification doesn’t lead to sufficient change of mass and complete transformation. Analysis of reaction product shown clear strong signal for
cyanate, but some small amount of unreacted source products also present. This however is not critical for further calcinations step, since strong
heat will cause them to react further, forming final reaction product.
4. Then this crude cyanate is heated up to about 300-400C, impurities of unreacted urea and calcium
oxide will react/decompose, forming more ammonia. This additional amount of ammonia evolved is quite small but is easily detectable by smell, so it is
advised to perform calcinations in place with good ventilation. Remember to use closely fit lids for both crucible and furnace to prevent oxidation by
air, if such lids are used circulation of waste reaction gases is avoided, allowing them to act as protective atmosphere for main product.
5. Analysis of both colored layers shown that their constituents are exactly the same – both show
strong and clear signal for cyanamide with ammoniacal silver nitrate and both contain only tiny traces of cyanate shown by reaction with cobalt salt
solution. It appears that grey coloration of bottom layer is caused by charring of some organic impurities present in starting cyanate, and is not
related to exact calcination temperature or speed of heating.
Photos:
1. Left photo shows reaction mixture on beginning of foaming, middle one is resulting crude calcium cyanate, latest photo shows product reaction on
cyanate using cobalt salts.

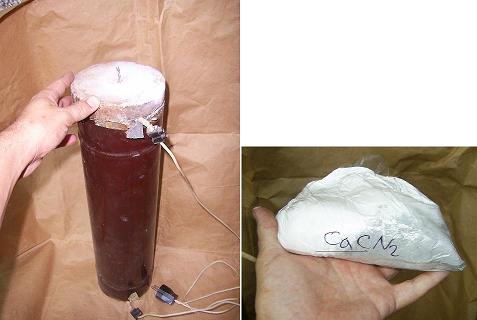

2. Left photo shows furnace operating on calcinations stage, next one shows two layers in final product removed from the crucible, third one shows
final product from mixed layers and last one shows product reaction on cyanamide with ammonacal silver nitrate – yellow coloration is result of
precipitating silver cyanamide.
