Author: Subject: Brand new JJ-1 Over Head Laboratory Mixer speed cntrol not working... Help diagnosing problem please?
LD5050
Hazard to Others
***




Posts: 182
Registered: 16-1-2017
Member Is Offline

Mood: No Mood

[*] posted on 12-10-2019 at 14:06
Brand new JJ-1 Over Head Laboratory Mixer speed cntrol not working... Help diagnosing problem please?


Brand new JJ-1 Lab Mixer bought on Amazon speed control does not work. Can anyone here help me diagnose the issue? I'm hoping it is just something simple that can be fixed without having to return the thing, which honestly i doubt i would even do. I purchased this specific unit for approx 70 USD here is a link to the exact mixer i bought> https://www.amazon.com/Variable-Electric-Overhead-Corrosion-...

I received the mixer from Amazon in a timely fashion and the shipping container was in good condition so i don't believe shipping has anything to do with the problem. I constructed the mixing apparatus as described by the instructions. Every thing seems to work perfectly except for the most important feature.... the variable speed controller...
I will post pictures of the mixer and what i have going on at the bottom of this post. But anyway, I removed the cover to the main control box to look for a any loose wires or connections but cant find any. One thing i did find are two white knobs inside the control box that control at which point the mixer motor turns on according to the position of the main speed control dial on the exterior of the control box (i can get more into this if some one actually takes the time to read this and has the time to help me out).
I have a multi meter for trouble shooting but i have no clue really about electronics but from what i can see this looks like a pretty simple circuit to some one who has some sort of back round in electronics. Thanks in advance to anyone willing to take the time to help trouble shoot what ever is going on here or even come up with another way to control the speed of the motor.
View user's profile View All Posts By User
LD5050
Hazard to Others
***




Posts: 182
Registered: 16-1-2017
Member Is Offline

Mood: No Mood

[*] posted on 12-10-2019 at 14:42




IMG_0242.jpg - 2.1MB IMG_0243.jpg - 2.4MB
View user's profile View All Posts By User
LD5050
Hazard to Others
***




Posts: 182
Registered: 16-1-2017
Member Is Offline

Mood: No Mood

[*] posted on 12-10-2019 at 14:45




IMG_0251.jpg - 1.4MB IMG_0249.jpg - 1.4MB IMG_0250.jpg - 1.9MB
View user's profile View All Posts By User
TheMrbunGee
Hazard to Others
***




Posts: 364
Registered: 13-7-2016
Location: EU
Member Is Offline

Mood: Phosphorising

[*] posted on 12-10-2019 at 15:31


Sorry to read this!

So you are saying that everything works besides the speed control, so does it spin the motor and you can't control the speed or what?

I am not familiar with this kind of machines, but looks quite simple. But to start I must know the exact problem description. What is not working, how it was supposed to what it does instead. circuit looks simple enough to find the problem with multi meter.

EDIT: If the timer works but nothing else, then you should check the fuse.

[Edited on 12-10-2019 by TheMrbunGee]




View user's profile Visit user's homepage View All Posts By User
monolithic
Hazard to Others
***




Posts: 436
Registered: 5-3-2018
Member Is Offline

Mood: No Mood

[*] posted on 12-10-2019 at 15:35


Does it spin at all? If you can hard wire the motor and verify that the motor works, start working your way through the rest of the circuit. Test the power switch. If it's on, you should be getting some sort of voltage across it. You can test the potentiometer quite easily, according to some spec sheets you should get 27 ohms to 10k ohms across its range of travel. See https://p.globalsources.com/IMAGES/PDT/SPEC/334/K1134163334.... https://sciencing.com/test-potentiometer-4910467.html
View user's profile View All Posts By User
Sulaiman
International Hazard
*****




Posts: 3721
Registered: 8-2-2015
Location: 3rd rock from the sun
Member Is Offline


[*] posted on 12-10-2019 at 16:54


Get a refund or replacement !
You are covered by Amazon policy - including p&p.

Do not mess with the insides - it may invalidate your warranty !

You may end up with a new unit (or refund), plus this faulty one :)
ask again at that time.

P.S. My general policy for Amazon or eBay purchases is;
test - if faulty immediately ask for replacement.
You may have to post the faulty item back - ask for a prepaid postage label.
Often the postage costs cause suppliers to not want the faulty unit returned,
in which case you end up with the faulty unit (to mess with or attempt repair) AND a new unit or a refund.

If the item works then optionally open it up and check for poor assembly and rectify.

[Edited on 13-10-2019 by Sulaiman]




CAUTION : Hobby Chemist, not Professional or even Amateur
View user's profile View All Posts By User
andy1988
Hazard to Others
***




Posts: 135
Registered: 11-2-2018
Location: NW Americus ([i]in re[/i] Amerigo Vespucci)
Member Is Offline

Mood: No Mood

[*] posted on 12-10-2019 at 17:17


Once I bought a "top-shelf" ATX powersupply, but one of the wires critical to its function were not crimped into the molex connector properly, and it was hours of pain to get it in there.

Check the resistance of each of those wires, across the connector, onto the other side of the board or to whatever is accessible.

That'd be my first guess as to what the issue may be.

IMG_0249.jpg-thumb.jpg - 15kB IMG_0250.jpg-thumb.jpg - 19kB

Quote: Originally posted by LD5050
One thing i did find are two white knobs inside the control box that control at which point the mixer motor turns on according to the position of the main speed control dial on the exterior of the control box (i can get more into this if some one actually takes the time to read this and has the time to help me out).


Or that, sounds like some sort of calibration. I'm not familiar with those and I'd expect that to be in a manual.

[Edited on 13-10-2019 by andy1988]




View user's profile View All Posts By User
LD5050
Hazard to Others
***




Posts: 182
Registered: 16-1-2017
Member Is Offline

Mood: No Mood

[*] posted on 12-10-2019 at 17:53


thanks for all the replies this is great. My father who is good with this kind of stuff, after giving him a brief description over the phone, thinks its the Rheostat also called the potentiometer i believe. I'm wondering if i can pull a rheostat/potentiometer out of some other common appliance and switch it with the broken one.

Yes the motor does spin at a high rate of speed when i turn the unit on and twist the speed control knob clock wise and when i turn it counter clock wise until it cant turn any further the motor will shut off. So its either i get the full RPM of the motor or i get nothing.

SULAIMAN, after thinking about it i have changed my mind and i will put in a complaint to Amazon and maybe i will end up with two! but if not yes they will definitely replace this broken one.

The Rheostat has the following stamped on the back in blue ink: WX110(010)
2K2+-5%
Does anyone know of a common household appliance that would have this or one equivalent that i can substitute it with? possibly a ceiling fan speed control knob ?
View user's profile View All Posts By User
LD5050
Hazard to Others
***




Posts: 182
Registered: 16-1-2017
Member Is Offline

Mood: No Mood

[*] posted on 12-10-2019 at 17:57
picture of rheostat




IMG_0267.jpg - 1.9MB IMG_0266.jpg - 1.7MB
View user's profile View All Posts By User
Sulaiman
International Hazard
*****




Posts: 3721
Registered: 8-2-2015
Location: 3rd rock from the sun
Member Is Offline


[*] posted on 13-10-2019 at 03:59


A new one is not too expensive
e.g. https://www.ebay.co.uk/itm/WX110-010-2-2K-2K2-1W-6mm-Metal-S...

but first check the potentiometer using your multimeter on the Ohms range, with the connector removed from the pcb.
2.2 kOhm +/-5% between the two outer tabs,
almost zero to 2.2 kOhms between the centre tab and either of the outside tabs as you rotate the shaft.

As it is a wirewound potentiometer you should be able to feel and hear the wiper moving across the resistance wire turns,
it should be smooth and consistent.

Try the same measurements at the connector end
(you may need to wrap some fine wire around your meter probes and poke the ends of the wires into the connectors)




CAUTION : Hobby Chemist, not Professional or even Amateur
View user's profile View All Posts By User
phlogiston
International Hazard
*****




Posts: 1379
Registered: 26-4-2008
Location: Neon Thorium Erbium Lanthanum Neodymium Sulphur
Member Is Offline

Mood: pyrophoric

[*] posted on 14-10-2019 at 02:19

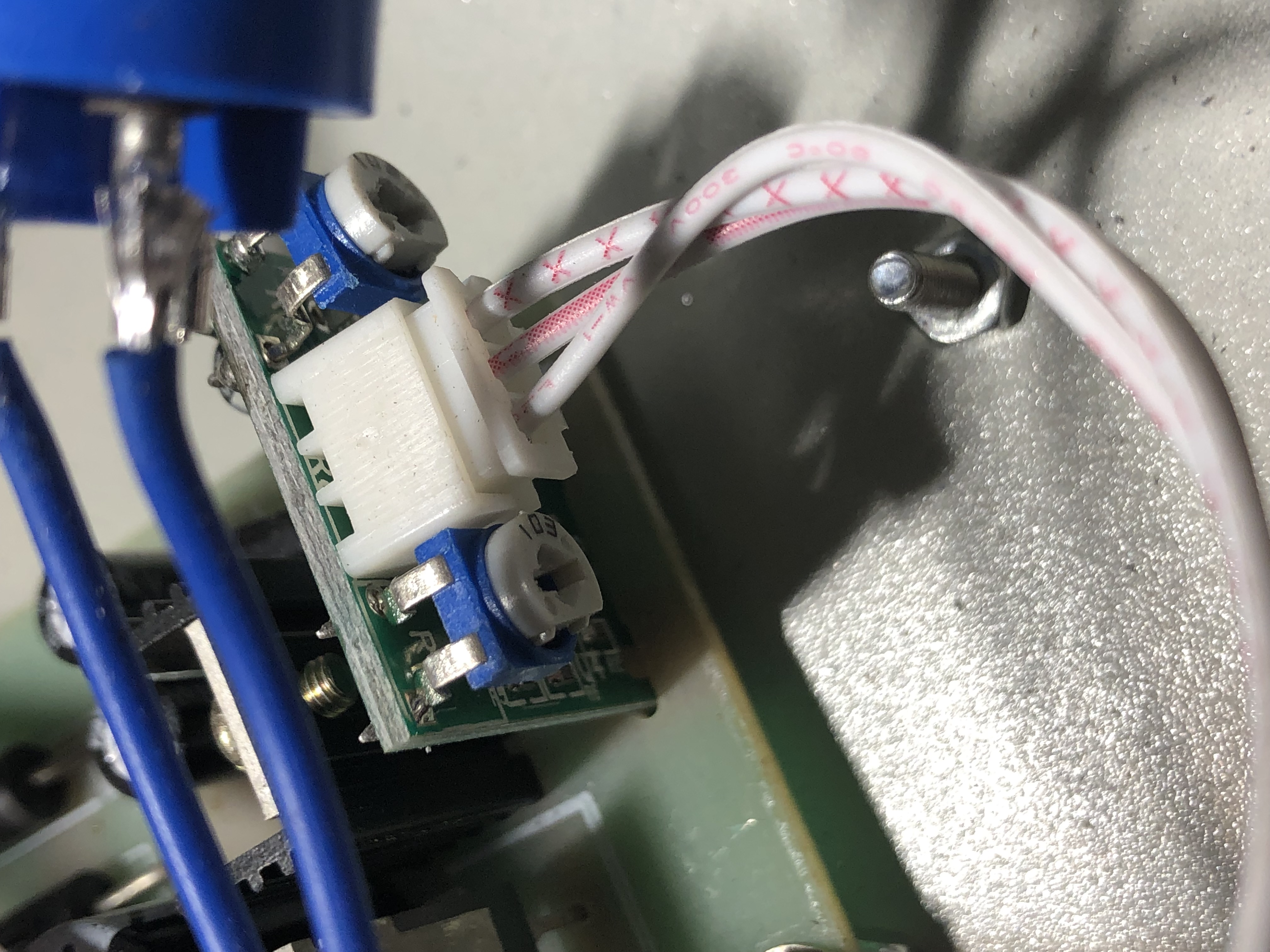

There are two adjustable resistors on the mini board (mounted upright) two which the rheostat is connected, one on either side of the connector. These presumably form a voltage divider with the rheostat.

The behavior that you describe could be caused by a wrong setting of one or both of these adjustable resistors. In that case, nothing is broken. You would only need to adjust the setting of these resistors.

However, I think Sulaiman's advice is best. Get a replacement first, and then fix this one. It looks simple indeed, I think it is definitely doable to fix it with our help.

https://www.sciencemadness.org/whisper/files.php?pid=624290&...




-----
"If a rocket goes up, who cares where it comes down, that's not my concern said Wernher von Braun" - Tom Lehrer
View user's profile View All Posts By User
OldNubbins
Hazard to Others
***




Posts: 136
Registered: 2-2-2017
Location: CA
Member Is Offline

Mood: Comfortably Numb

[*] posted on 14-10-2019 at 10:07


Sounds like an issue with the trim pots. I attached an image with a circle around a bad solder joint on one of the pots that could be the culprit.

Capture.JPG - 52kB
View user's profile View All Posts By User
LD5050
Hazard to Others
***




Posts: 182
Registered: 16-1-2017
Member Is Offline

Mood: No Mood

[*] posted on 15-10-2019 at 15:46


Thanks for the replies everyone. I ended up just scrapping the control box/unit what ever you want to call it and i improvised a "potentiometer" for control of the motor by taking apart an old battery powered drill and using the trigger assembly. I hooked the drill battery to the trigger assembly and then to the mixer motor lead wires. a simple pipe clamp around the trigger to adjust and hold the position of the trigger therefore controlling the speed of the motor......:P

I know... very micky mouse setup but i needed it in a hurry. I will being filing a claim with Amazon but now that i totally detroyed the thing im not sure they will send me a new one. Or will they? im not sure how Amazon works, my wife actually ordered this for me as a gift. I would assume Amazon would want me to mail the original mixer back first then send me a new one? Oh and i will post pictures ASAP of my nightmare set up if anyone is interested.
View user's profile View All Posts By User
G-Coupled
Hazard to Others
***




Posts: 287
Registered: 9-3-2017
Member Is Offline

Mood: Slightly triturated

[*] posted on 15-10-2019 at 18:15


Aaargh, what a waste, dude! You could've checked the pots with a $10 multimeter and figured it out. I mean - bravo for McGuvering whatever that thing is, but minus several million for 'Green Chemistry'.
